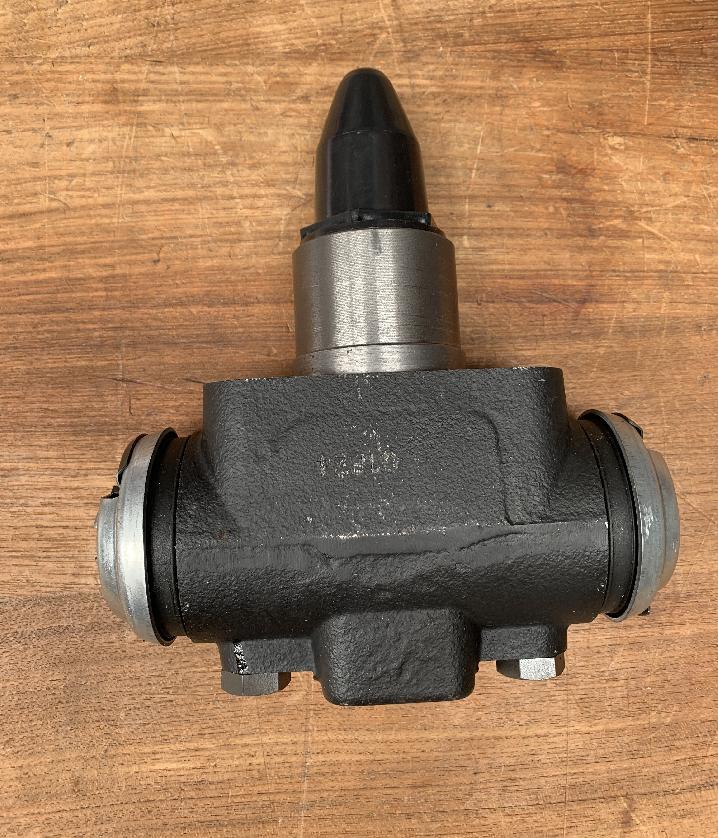

Krupp 1369704 - EXPANDER UNIT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
1369704, 01369704, 001369704

Parts for Krupp KMK 3045, Figure 2214711-ETL:
Part Number 1369704: EXPANDER UNIT

Pos nr	Part number	Description	Weight in kg
1	1201548	SEALING PLUG
2	1924695	BRAKE SPIDER
3	1925798	COVERPLATE DUPLEX
4	1066769	TENSION SPRING	0.15
5	1201546	PRESSURE SPRING	0.020
6	1925800	STIRRUP
7	1925801	WASHER
8	0438047	RIVET	0.010
8	2214701	BRAKE LINING	1.470
8	2214700	BRAKE SHOE WITH LINING 500X180 MM
9	1369704	EXPANDER UNIT	4.250
10	1927225	NUT	0.185
