Parts for Grove GMK 3050, Figure 2303152-ETL:

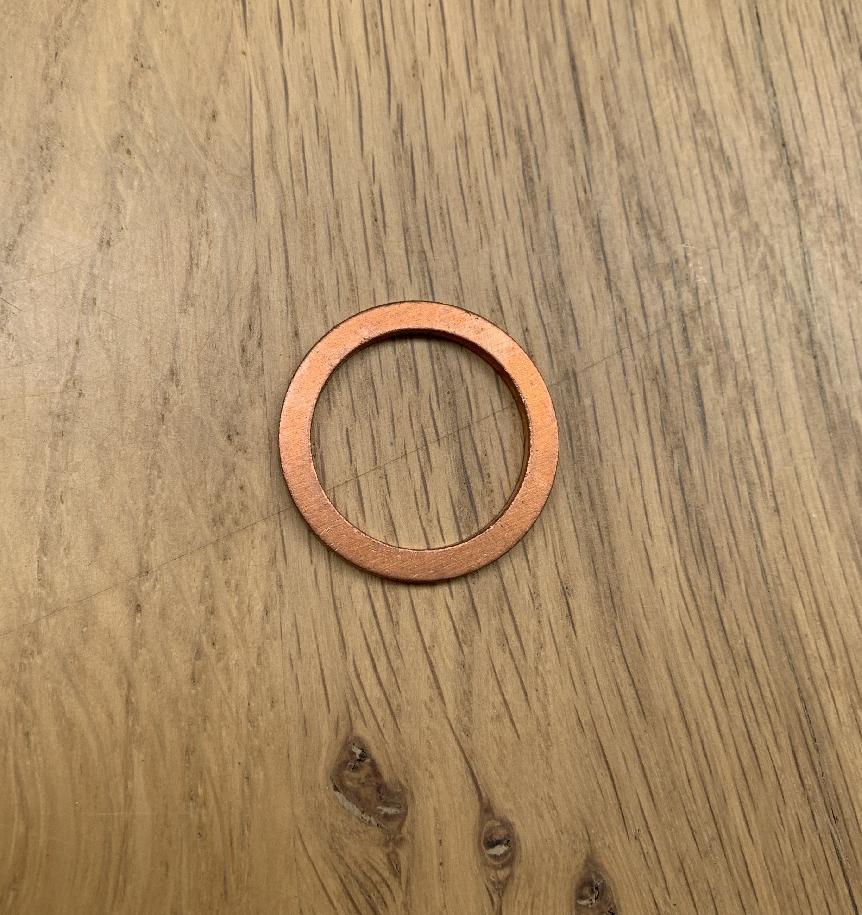

Part Number 2312311: GASKET
Pos nr Part number Description Weight in kg
0037176 HEXAGON BOLT
436618 HEXAGON NUT
2257203 ELASTOMER INSERT
0439547 HEXAGON SCREW
0435685 WASHER
1 2303170 HOSES AND PIPES
002 2303172 HYDRAULIC PUMPS 97.300
3 2303174 OIL TANK
4 2303176 AXLE SUSPENSION 1/2
5 2303178 AXLE SUSPENSION 3 21.870
6 2303180 VALVE BLOCK, CARRIER 16.330
7 2303182 VALVE BLOCK, OUTRIGGERS 7.200
8 2303184 SERVOCOM, COMPLETE
9 2303186 EMERGENCY-STEERING PUMP
10 2303188 VALVE BLOCK, STEERING SYSTEM
11 2303190 VALVE PLATE, SEPARATE STEERING
12 2310653 STEERING CYLINDER (ZF) 0.001
13 1576637 STEERING CYLINDER 7.66
13 1576638 STEERING CYLINDER 7.66
13 1574660 STEERING CYLINDER 7.66
13 2312044 STEERING CYLINDER (HENGSTLER) 0.001
14 1576315 STEERING CYLINDER 9.74
14 1681051 STEERING CYLINDER 9.74
14 1925500 STEERING CYLINDER 9.74
14 2312043 WORKING CYLINDER (HENGSTLER)
15 2310329 STEERING CYLINDER 35.200
15 2312309 SET OF SEALS 0.27
15 2312310 PRESSURE SWITCH 0.200
15 2312311 GASKET 0.005
15 2312312 CAP 0.005
16 2303192 HYDRAULIC OUTRIGGER
17 2310452 HYDRAULIC SWIVEL 83
19 2255009 SHOCK ABSORBER 0.200
20 1921996 SAE-SPLIT FLANGE HALF 0.730
21 1370144 O-RING 0.005
22 0437203 HEXAGON SCREW 0.090
23 0437720 SPRING WASHER 0.005
24 1680184 SAE-SPLIT FLANGE HALF 0.26
25 1068981 O-RING 0.01
26 1146978 HEXAGON SOCKET HEAD CAP SCREW 0.05
27 0437719 SPRING WASHER 0.005
28 1921938 SAE FLANGE HALF
29 1376576 O-RING 0.005
30 1577155 HEXAGON SOCKET HEAD CAP SCREW 0.03
31 0437718 SPRING WASHER 0.005
33 2211059 SAE FLANGE HALF
34 1068980 O-RING 0.005
35 1146946 HEXAGON SOCKET HEAD CAP SCREW 0.04
36 1923973 SAE-SPLIT FLANGE HALF 0.100
37 1373040 HAND PUMP 4.8
38 2304469 HYDRAULIC DRIVER
39 2255008 FLOW INDICATOR 1.200
40 1146980 HEXAGON SOCKET HEAD CAP SCREW
41 0436163 SPRING WASHER 0.005
42 0437642 HEXAGON NUT M8 0.003
43 2312488 FASTENING CLAMP 0.42
46 0438501 HEXAGON SCREW
47 0437643 HEXAGON NUT M10 0.010
48 0437545 SPRING WASHER 0.005
49 1146955 HEXAGON SOCKET HEAD CAP SCREW 0.100
50 3004579 SUCTION LINE
52 3004580 SUCTION LINE 8.88
55 2304768 SUCTION LINE 5.700
56 1575171 CLAMP
57 1148075 HEXAGON SOCKET HEAD CAP SCREW
60 1575152 SCREW-IN FITTING 0.15
61 1921883 SCREW-IN FITTING 0.300
62 1147703 W-CONNECTION NOZZLE 0.260
63 1147746 L-CONNECTION NOZZLE 0.100
64 1147755 T-CONNECTION NOZZLE 0.085
65 0434089 W-CONNECTION NOZZLE 0.85
67 1147702 CONNECTING NOZZLE
76 2253015 SCREW-IN FITTING 0.044
77 0208011 T-CONNECTING NOZZLE 0.09
85 1147645 W-CONNECTION NOZZLE 0.206
93 0208008 W-CONNECTION NOZZLE 0.082
100 2257201 MOUNTING RAIL NUT
101 2257200 DOUBLE CLAMPING BRIDGE
102 2312741 ELASTOMER INSERT
103 2257647 ELASTOMER INSERT
104 2257202 ELASTOMER INSERT
105 2257767 ELASTOMER INSERT
106 2257765 ELASTOMER INSERT
109 0437137 PIPE 18X2 (PER METER) 0.100
110 0437191 HEXAGON SCREW M12X35 0.04
111 0437644 HEXAGON NUT M12 0.084
112 0206532 WASHER
113 0437546 SPRING WASHER 0.005
114 2313834 RUBBER PLATE
115 2312602 BREATHER 0.25
116 1575138 SWIVEL COUPLING
117 0435648 COUPLING NUT 0.06
118 0551444 SLEEVE 0.004
119 2312603 ANGULAR CONNECTOR
120 0208002 SCREW CONNECTION 0.01
122 0436470 CUTTING RING 0.005
123 1571488 CLAMP 0.03
125 1148105 HEXAGON SOCKET HEAD CAP SCREW M6X50 0.015
126 1686701 WASHER 0.005
137 1571489 CLIP
