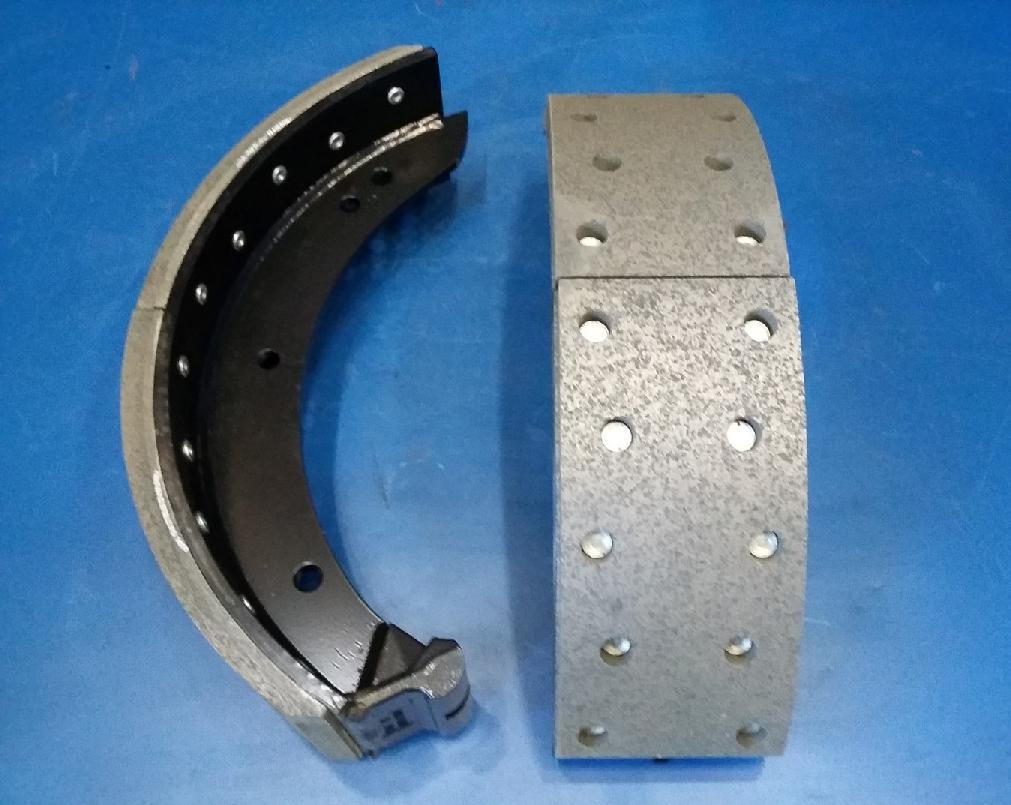

Grove 3322116 - BRAKE SHOE WITH LINING 500X120 MM

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3322116, 03322116, 003322116

Parts for Grove GMK 2035, Figure 3322115-ETL:
Part Number 3322116: BRAKE SHOE WITH LINING 500X120 MM

Pos nr	Part number	Description	Weight in kg
1	2315403	BRAKE COVER PLATE	3.11
2	2315390	SCREW PLUG	33
3	2315391	BRAKE ANCHOR PLATE	12
4	2315393	TENSION SPRING	0.13
5	3322116	BRAKE SHOE WITH LINING 500X120 MM	8.910
5.01	3322117	BRAKE LINING	0.001
6	2315395	EXPANDER UNIT SIMPLEX	5.16
7	1927225	NUT	0.185
