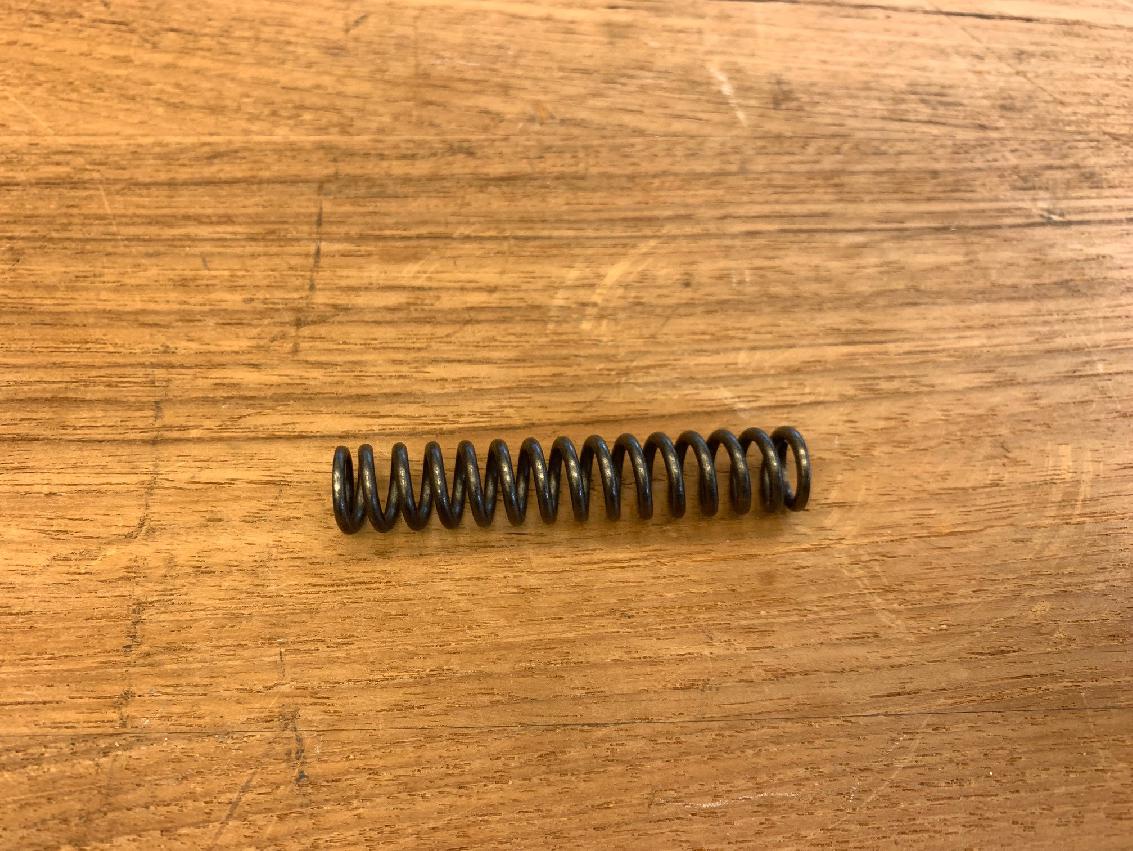

Grove 3046571 - SPRING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

3045902-ETL (Grove GMK 5180 )
3045902-ETL (Grove GMK 5200 )
3322783-ETL (Grove GMK 5200 )
3045902-ETL (Grove GMK 6220L )
3322783-ETL (Grove GMK 6220L )
3066666-ETL (Grove GMK 6300 )
3319828-ETL (Grove GMK 6300 )
3322809-ETL (Grove GMK 6300 )
GMK (Grove GMK )

Also known as:
3046571, 03046571, 003046571

Parts for Grove GMK 5200, Figure 3045902-ETL:
Part Number 3046571: SPRING

Pos nr	Part number	Description	Weight in kg
1	3043041	BRAKE FLANGE
2	3043042	DRIVE SLEE VE
3	3043043	MOTOR FLANGE
4	3043044	MOTOR FLANGE
10	2251533	GROOVED BALL-BEARING	0.4
11	0105336	CIRCLIP
12	0028204	CIRCLIP
13	2315758	CIRCLIP	0.001
14	3043046	ROTARY SHAFT SEAL	0.16
15	3043047	ROTARY SHAFT SEAL	0.04
16	1931119	O-RING	0.005
17	1068605	O-RING	0.005
19	0117125	SEALING RING	0.005
20	3043048	DISK CARRIER
21	3043049	VENT VALVE	0.010
22	2315762	SHIM RING
24	3045908	ACTUATOR	6.04
25	3043051	DISK HOUSING
26	3043052	OUTER LAMELLA	0.11
27	3043053	INNER LAMELLA	0.13
28	3043054	FREE WHEEL	0.14
29	3043055	SHIM	0.01
30	3043056	SHIM	0.015
31	3043057	O-RING	0.01
33	2315757	COVER	0.001
35	3043074	SPINDLE BEARING	0.18
36	3043059	GROOVED BALL-BEARING	0.13
37	1205573	ROTARY SHAFT SEAL	0.2
39	0117137	RING SEALING	0.001
40	3043060	INTERMEDIATE FLANGE
42	3043063	STEEL PIPE	0.001
46	3045910	INTERMEDIATE FLANGE
48	0117129	SEALING RING	0.17
50	3046571	SPRING	0.012
51	3046572	SPRING	0.010

* Selected parts are automatically added to your RFQ list *

3046571 Grove GMK 6300 SPRING
