Parts for Grove GMK 5095, Figure 3134525-ETL:
Part Number 3054050: ALL-WHEEL STEERING
Pos nr Part number Description Weight in kg
11 3116995 ANGULAR GEAR 0.001
11 3134639 SET OF SEALS 0.062
11 3316433 SET OF SMALL PARTS, 0.040
12 1207938 HEXAGON SCREW 0.06
13 0436618 HEXAGON NUT 0.16
14 2314494 WASHER M8X20 0.180
15 3134854 STEERING SHAFT
16 3011929 SHIFT LEVER 5.3
17 3011939 SHIFT LEVER 5.4
18 3054050 ALL-WHEEL STEERING 94
20 2257887 BEARING BUSH 1.72
21 3129811 SEALING RING 0.140
22 1925392 UNIVERSAL JOINT 0.980
23 1682743 GROOVED PIN 0.005
26 2257888 PLAIN BEARING BUSH 0.360
27 2257889 GROOVED RING 0.018
28 1369316 END DISK 0.71
29 1372846 HEXAGON BOLT
30 0432989 STEEL CABLE 1
31 3146127 STEERING LEVER
32 0436506 HEXAGON BOLT
33 3121115 VARIANTS STEERING RODS (L=1840) 12.7
33 3108138 STEERING ROD
33 3126124 STEERING ROD
34 3121097 STEERING ROD L 1520 13
34 3125862 STEERING ROD
35 3125882 STEERING ROD
35 3125881 STEERING ROD 10.5
35.01.02 3328377 BALL PIVOT LH 3.5
35.01.04 1686193 CASTLE NUT 0.11
35;01.0I 3328376 BALL PIVOT RH 3.5
36 3126170 STEERING ROD
36 3126149 STEERING ROD 13
37 3126162 STEERING ROD
37 3126143 STEERING ROD 75
37.02.03 3328320 CLAMP STRAP CPL. 0.95
39 3121086 STEERING ROD 23
39 3125851 STEERING ROD
39 3128484 STEERING ROD
40 3125856 STEERING ROD (HEYD) 9.6
40 3126755 STEERING ROD (ZF) 0.001
40 3121091 VARIANTS STEERING RODS (L=1250) 19.2
40.01.02 1147603 COTTER PIN 0.005
40.01.03 3328155 BALL PIVOT RH 1.620
40.01.04 3328156 BALL PIVOT LH 1.620
40.02.01 3328322 BALL PIVOT 1.9
40.02.02 3328323 BALL PIVOT 1.78
40.02.03 3328324 CLAMP STRAP CPL. 0.25
40.02.04 1921799 CASTLE NUT 0.050
41 3125871 STEERING ROD (ZF)
41 3126159 STEERING ROD (HEYD)
41 3126136 VARIANTS STEERING RODS (L=1650) 17.4
42 3328315 BALL PIVOT 3.04
42 3126155 STEERING ROD
42 3126747 STEERING ROD
42 3126140 STEERING ROD 10.2
42.02.02 3328316 BALL PIVOT 3.06
42.02.03 3328317 CLAMP CPL. 0.34
43 3126167 STEERING ROD
43 3126147 STEERING ROD
44 3145121 BALL PIVOT (HEYD) 1.82
44 3145122 BALL PIVOT (ZF) 1.82
44 3145120 BALL PIVOT 1.82
45 3125868 STEERING ROD
45 3126157 STEERING ROD
45 3126133 STEERING ROD
47 3125842 STEERING ROD (ZF)
47 3125852 STEERING ROD (HEYD)
47 3121087 VARIANTS STEERING RODS (L=1055) 8.17
51 2311116 BOLT
* Selected parts are automatically added to your RFQ list *

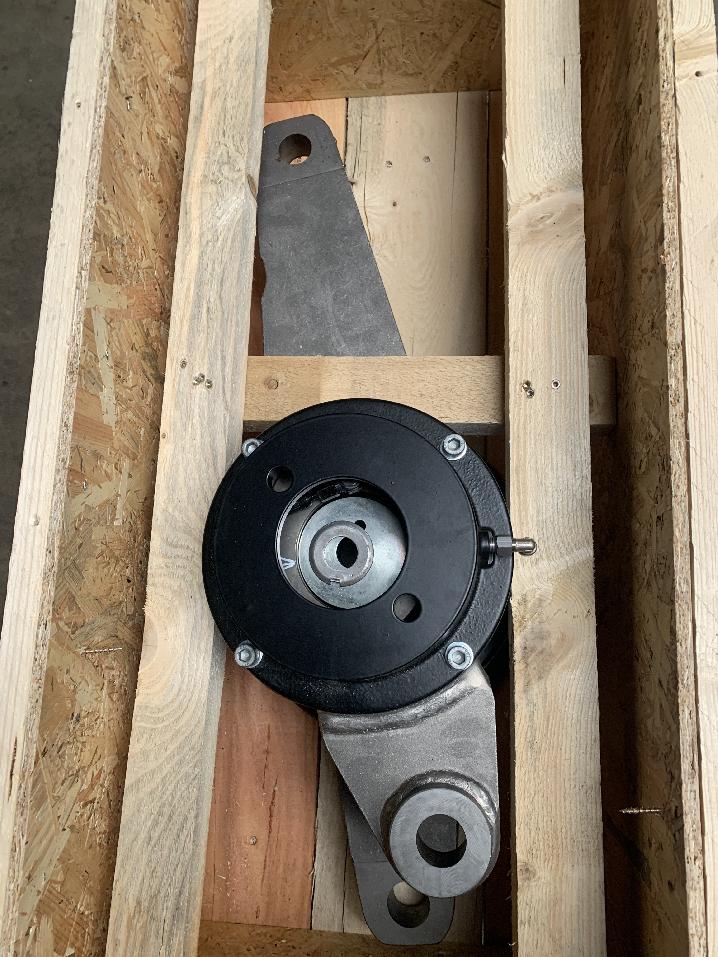

3054050 Grove GMK 4080-1 ALL-WHEEL STEERING
