Figures in which the part appears:
2165910095 (Grove RT 650 E )
Also known as:
7246100040, 07246100040, 007246100040
Parts for Grove RT 650 E, Figure 2165910095:

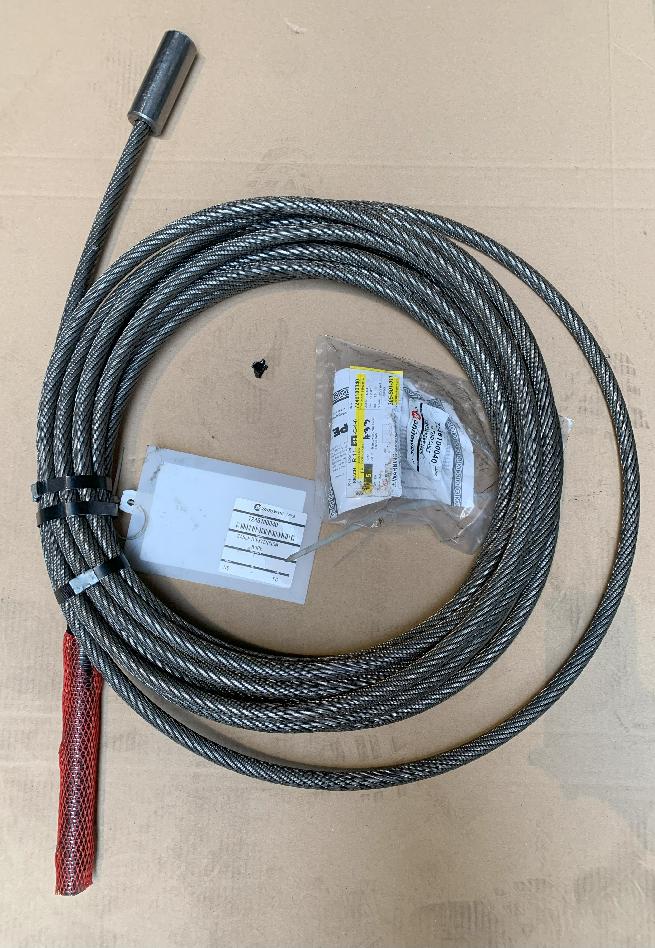

Part Number 7246100040: CABLE, EXTENSION
Pos nr Part number Description Weight in kg
7755021002 O-RING 2.320
6069100000 BEARING
6069100001 BEARING
7069100041 BEARING
7069100069 BEARING 1.850
7671100079 WEAR PAD 0.350
7671100081 TEFLON PLUG
7755916002 O-RING 0.002
1 2165910083 BASE SECTION WELD
2 2165910085 INNER MID WELDMENT
3 2165910087 OUTER MID WELD 1234
4 2165910052 SECTION, FLY AND NOSE
5 6372100173 CYLINDER ASSEMBLY - 8 1/4" 1425.310
6 7671100082 WEAR PAD ASSY 0.380
7 4165910219 PAD HOLDER
8 7118171050 CAPSCREW 1.440
9 7949000317 WASHER I.D.
10 7099100006 CAP SCREW
11 7660170000 NUT, HEX
12 4165910072 PLATE, RETAINER
13 7115151050 CAPSCREW 0.014
14 4165910073 PLATE, KEEPER 0.03
15 6671001148 PAD, WEAR 0.227
16 7111160807 SCREW, MACHINE
17 6671000166 PAD, WEAR 0.064
18 7671100022 LOWER WEAR PAD
19 6671000236 PAD, WEAR 1
20 4165910166 PLATE, RETAINER
21 7786160803 SET SCREW
22 4165910075 PLATE, KICKBACK
23 7115150650 CAP SCREW 0.010
24 4165910076 PLATE, CYLINDER MOUNTING
25 7118221850 BOLT, HEX
26 7949000236 WASHER 0.027
27 6718100015 SHEAVE 2.800
28 2165910023 GUARD
29 7949000333 WASHER 0.050
30 4165910079 SHAFT 1.35
31 7440000000 FITTING, GREASE 1/8"NPT 0.006
32 6689100040 PIN
33 7690082410 PIN, COTTER 0.004
34 2197910050 SHEAVE MOUNT WELD
35 6718100032 SHEAVE ASSY -5 GROOVE 27.4
36 4197910289 SHEAVE SHAFT
37 6949001174 PLATE, SPACER 0.050
38 2165910089 CABLE GUIDE WELD 2.910
39 7118221250 CAPSCREW
40 2165910025 FOOT
41 6671000177 PAD, WEAR 0.080
42 2165910069 MOUNT, SHEAVE
43 6718100000 SHEAVE 1.896
44 7949000235 WASHER 1/2 ID 0.006
45 7118181050 1/2 NC X 1 1/4 0.047
46 2165910027 ANCHOR
47 4165910223 CYL MNT PLATE
48 6718100017 SHEAVE 4.96
49 2165910028 GUARD
50 4165910091 SHAFT
51 7115154050 CAP SCREW
52 7660152701 LOCKNUT
53 2165910029 ANCHOR
54 4165910093 PLATE, KICKBACK
55 7246100037 CABLE, RETRACTION 3.180
56 7660190008 NUT, HEX
57 7246100038 CABLE, RETRACTION 3.040
58 7246100039 CABLE, SYNCHRO 9.500
59 7660220008 NUT, HEX
60 7447161602 CONNECTOR
61 4159910033 ANGLE, MOUNTING 0.214
62 4165910198 ANGLE, MOUNTING
63 4165910182 ANGLE, MOUNTING 0.164
64 4165910165 ANGLE, MOUNTING 0.1
65 7246100040 CABLE, EXTENSION 24.300
66 7949000230 WASHER 0.063
67 7660280008 NUT, HEX 0.170
68 7671100021 PAD, SIDE WEAR 0.500
69 6199100030 BUSHING 0.59
70 7950150050 LOCK WASHER 5116" RED 0.002
71 4165910217 COVER
72 7689000036 CLIP PIN
73 7118221650 CAPSCREW
74 6671000263 PAD, WEAR 0.113
75 7111160607 SCREW
76 4197910293 CABLE RETAINER 1.280
77 7115161050 HEX HD BOLT 0.103
78 7950160141 WASHER, 3/8" PLAIN NARROW 0.004
79 6705006974 PLATE
80 7118181250 CAPSCREW
81 7950150141 WASHER 5/16" I.D. 0.24
300 7576134143 WEAR PAD KIT
