3125345-ETL (Grove GMK 5130-2 )

Also known as:
3125346, 03125346, 003125346

Parts for Grove GMK 5130-2, Figure 3125345-ETL:

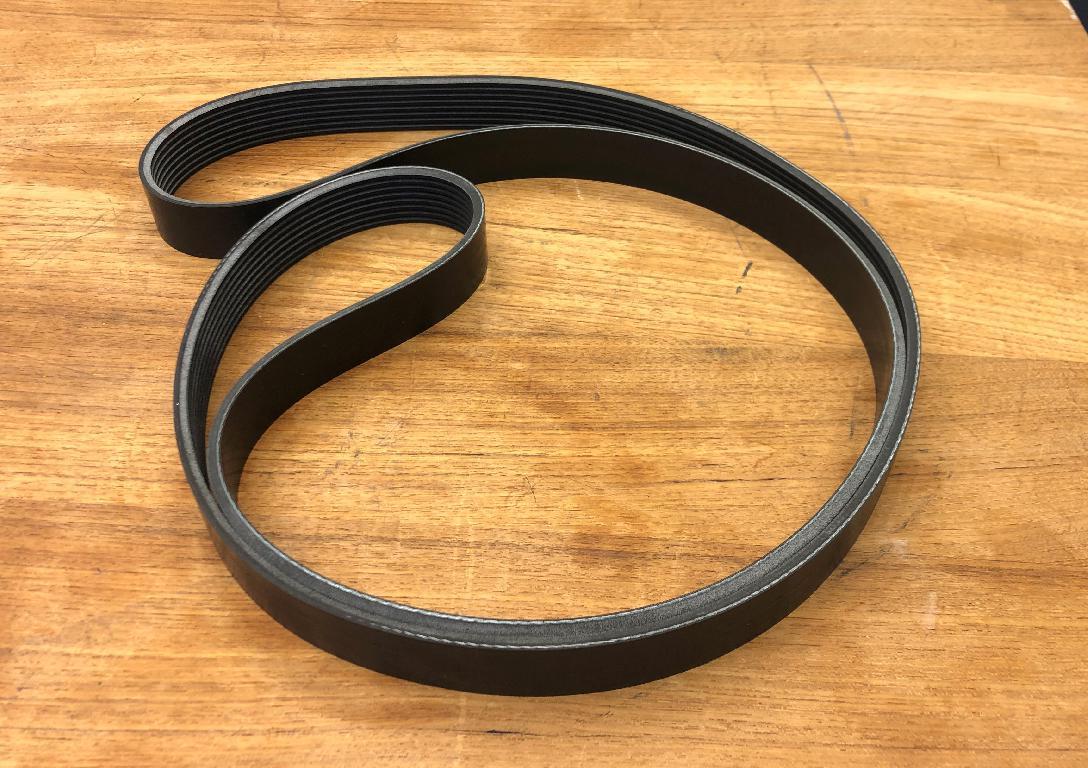

Part Number 3125346: MODIFICATION V-BELT

Pos nr	Part number	Description	Weight in kg
1	2316188	REFRIGERANT COMPRESSOR WITH COUPLING	7.880
2	3067215	COMPRESSOR PIPE	1
3	3012911	MOUNTING PIECE	0.21
4	3046696	CONSOLE	1
5	3125346	MODIFICATION V-BELT	0.001
6	3325693	GUIDE ROLLER	1.110
8	3046767	HEXAGON BOLT	0.03
9	0118954	HEXAGON SCREW	0.03
10	1576128	CLAMP (PAIR)	0.03
11	2318318	CLAMP (PAIR)	0.015
12	1571750	SUPPORT RAIL NUT	0.030
13	3063758	HOLDER	0.155
14	0437176	HEXAGON SCREW M8	0.01
15	1686701	WASHER M8	0.005
16	0437642	HEXAGON NUT M8	0.003
17	0437180	HEXAGON SCREW M10X16	0.020
18	1368030	WASHER M10	0.005
19	2253420	BEARING	22.816
100	0437286	HEXAGON SOCKET HEAD CAP SCREW M6X60	0.015
