Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
7974100013 (Grove RT 875E )
80026025 (Grove RT 880E )
80026025 (Grove RT 890E )
Also known as:
9974103052, 09974103052, 009974103052
Parts for Grove RT 890E, Figure 80026025:

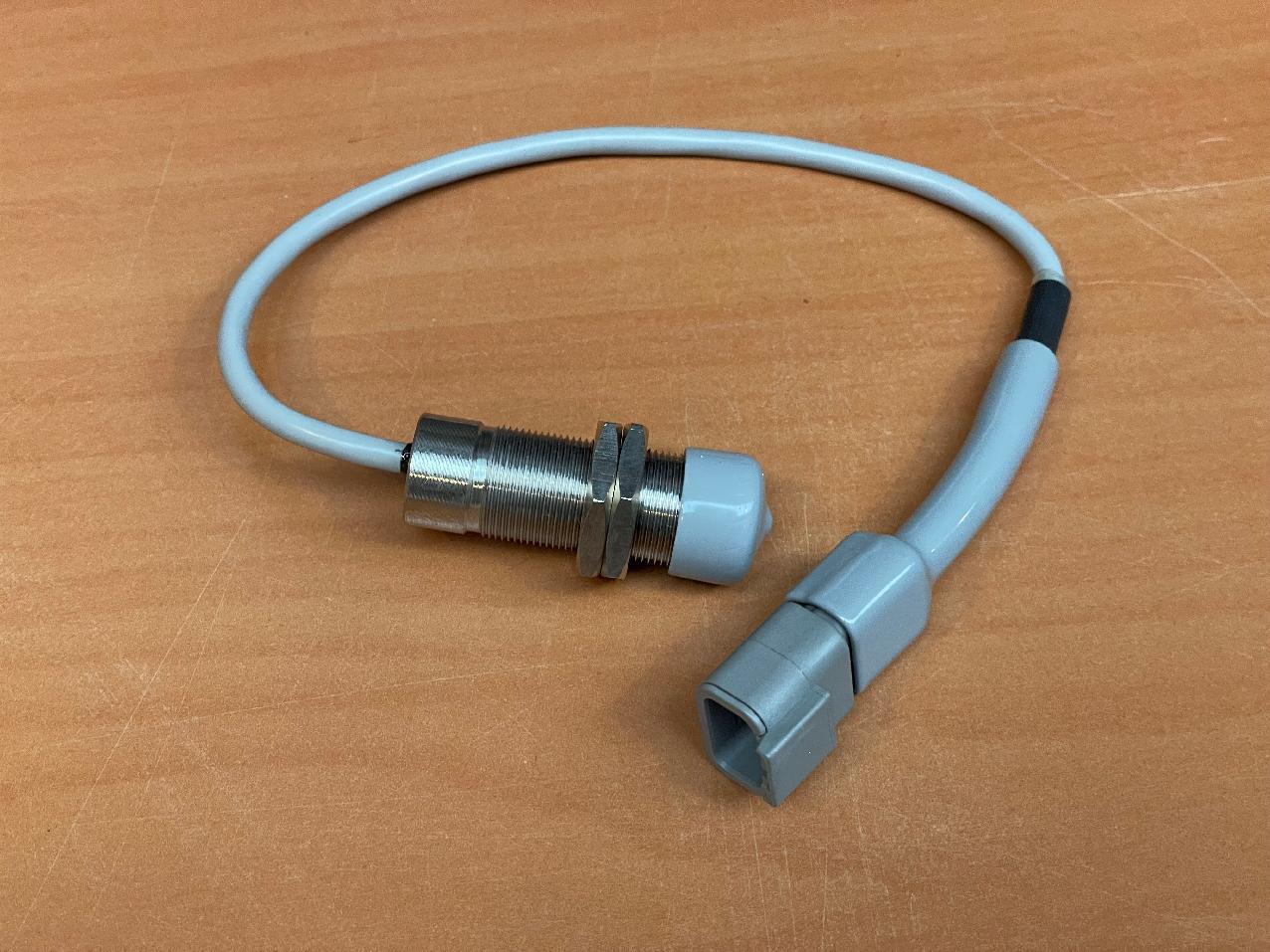

Part Number 9974103052: SENSOR ASSEMBLY
Pos nr Part number Description Weight in kg
7755908002 O-RING 0.050
7755904002 O-RING 0.005
9632103304 SOLENOID 0.700
9632103305 CONNECTOR
9974102227 O-RING 0.001
90019819 KIT, SEAL 0.295
1 9974103010 CLUTCH ASSY 3.2
2 9974103011 BRAKE CYLINDER ASSY. 14.200
3 9974103012 PLANET CARRIER ASSY. PRIMARY
4 9974103013 PLANET CARRIER ASSY. OUTPUT 0.001
7 90019910 ROLLER ASSY. GROUP 3RD WRAP
40 9974103046 PLATE, SIDE MOTOR
41 9974102733 HOUSING, BEARING 7.43
42 9974103015 CAPSCREW
44 9974101194 REDUCER, BUSHING
45 9974102858 PLUG, VENT 0.006
46 9974102701 GAUGE, SIGHT 0.068
48 9974103047 PLATE, SIDE
51 9974102954 CAPSCREW
52 9974100476 LOCKWASHER 1/2" I.D.
55 9974103017 GEAR, SUN/PRIMARY 1.976
56 9974103018 CLOSURE, DRUM
59 9974103020 DRUM, CABLE 227.272
60 9974103048 CAPSCREW 0.116
61 9974103049 BASE
62 9974103050 LOCKWASHER 0.010
64 9974102728 BEARING 3.08
65 9974102702 BEARING 1.650
66 9974103023 WASHER, THRUST 0.160
68 9974102730 O-RING 0.06
69 9974102703 SEAL 0.40
70 9974102963 SEAL 0.63
71 9974102973 WEDG E,CABLE
72 9974102201 PLUG, FLUSH
102 9974103024 PLATE, TH RUST 0.420
105 980939 DRIVE SCREW
132 9974103025 ROLLER, GUIDE 3.226
133 9974103026 SHAFT
134 9974102966 PIN
135 9974102967 WASHER
136 9974103027 CAPSCREW
137 9974103051 CAPSCREW
144 9974103052 SENSOR ASSEMBLY 0.120
145 9974103028 BAR TIE
146 9974103029 RING,SNAP 0.001
147 9974103030 ADAPTER
148 9974103042 CAPSCREW
202 9974103120 BRAKE CYLINDER
203 9974102952 DISC,BRAKE 0.09
204 9974102953 DISC,FRICTION 0.06
205 9974102955 SEAL,U-CUP 0.18
206 9974102974 RING,BACK-UP 0.230
207 9974102975 PLATE,PRESSURE 0.936
208 9974102976 SPACER 0.350
209 9974101168 BRAKE SPRING 0.022
210 9974102977 SPACER,SPRING 0.058
211 9576100557 O-RING 0.17
212 9974102979 RING,BACK-UP 0.005
213 9974102980 O-RING 0.002
214 9974103034 CAPSCREW
216 9974103035 PLUG
343 9576100566 RING, RETAINING 0.001
344 9974103032 BEARING 0.180
347 9974103033 RING, RETAINER 0.014
427 90019780 GEAR ASSY. 2.727
428 90019781 SHAFT ASSY. 0.564
429 9974103003 WASHER,THRUST
430 9974101174 ROLLER 0.045
431 9974102718 PIN
447 9974102191 RING, RETAINING 0.016
457 9974103019 GEAR, SUN/OUTPUT 2.110
501 9974103002 SPACER 0.020
535 90019782 GEAR ASSY.
536 90019783 SHAFT ASSY.
538 9974100902 ROLLER 0.012
677 90019784 MOTOR ASSY. HYD. 62.142
678 9974103036 MANIFOLD 1.160
679 90011396 VALVE ASSY. BRAKE 6
681 9974102982 CAPSCREW
683 9974102681 O-RING 0.010
684 9974103054 FITTING, TEE
685 9974102929 HOSE ASSY 0.224
686 9974103055 FITTING, ELBOW 0.066
689 9974102984 CAPSCREW
690 9974103037 CAPSCREW
691 9974103038 LOCKWASHER
692 90011399 FITTING,90DEG. ELBOW W/FILTER
693 90011400 PLUG, ORJFICE .047
697 90011397 FITTING, REDUCER
698 9974103039 O-RING 0.010
699 9974102931 PLUG
710 90019903 ROLLER ASSY.
711 9974102987 BRACKET
712 90019904 BRACKET, MOUNTING
713 90019905 SHAFT, ROLLER
714 9974102990 LEVER
715 9974102991 ARM,PIVOT R.H.
716 9974102992 ARM,PIVOT L.H.
717 9974102831 BRACKET
718 9974102810 ROD 0.038
* Selected parts are automatically added to your RFQ list *
