Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
7576134191 (Grove RT 530E )
7576134386 (Grove RT 540E )
Also known as:
9576101165, 09576101165, 009576101165
Parts for Grove RT 530E, Figure 7576134191:
Part Number 9576101165: KIT,BRAKE ASSY.
Pos nr Part number Description Weight in kg
7755904002 O-RING 0.005
9576101186 KIT,SEAL MOTOR 0.022
1 9576101173 NUT,RING
2 9576101142 PLATE,END
3 9576101171 KIT,SHIM
4 9576101329 SPACER
5 9576101307 PLATE, RETAINER 0.380
6 9576101330 SHAFT, OUTPUT
7 9576101308 CAPSCREW 0.150
8 9576101331 SEAL, OIL 0.072
9 9576101167 PINION 7.660
11 9576101332 BEARING
12 9576101333 RING, RETAINING
13 9576101334 O-RING 0.001
14 9576101335 BEARING 0.900
15 9576101180 GEARSUN
17 9576101183 PIN
18 9576101124 WASHER
19 9576101127 BEARING,NEEDLE 0.002
22 9576101181 PIN
26 9576101336 BEARING, NEEDLE
28 9576101129 WASHER
29 9576101130 RING,RETAINER
30 9576101176 GEARSUN
32 9576101175 CAPSCREW
35 9576101184 HOUSING,FLANGE MTG.
36 9576101136 COUPLING
37 9576101104 MOTOR ASSY. HYD. 6.7
38 9576101137 RING,RETAINER 0.160
39 9576101135 BEARING 0.260
40 9576101138 RING,RETAINER 0.024
41 7755245000 O-RING 0.06
42 7755152000 O-RING 0.004
43 7755251000 O-RING
44 9576101185 PLUG
45 9576101100 427
48 7755260000 O RING
49 7755170000 O-RING 0.005
50 7755265000 O RING 0.010
52 7709800001 PLUG, SAE #4 0.009
56 9576101140 RING,RETAINER 0.165
57 9576101338 O-RING 0.004
58 9576101141 PLUG
59 9576101126 GEAR,RING 2.460
60 9576101174 RING GEAR
61 9576101220 PLUG
63 9576101154 PLUG
64 9576101151 DIPSTICK
65 9576101152 ELBOW
66 9576101149 PIPE
67 9576101189 BREATHER 0.175
68 9576101148 CAPSCREW
69 9576101133 RING,RETAINER 0.010
70 9576101339 KIT, SHIM
75 9576101340 PLANETARY CARRIER ASSY. 13.500
76 9576101341 PLANETARY CARRIER ASSY. 5
77 9576101165 KIT,BRAKE ASSY. 20
78 9576101101 KIT,SEAL BRAKE 0.14
79 9576101102 KIT,DISC BRAKE 2.824
80 9576101337 KIT, SEAL 0.22
* Selected parts are automatically added to your RFQ list *

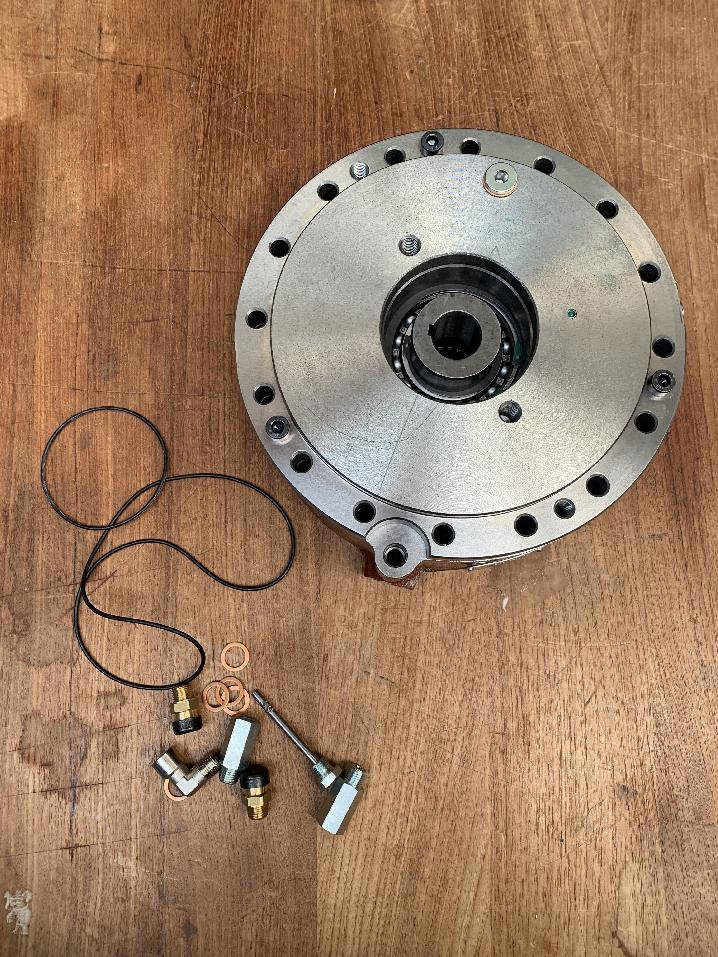

9576101165 Grove RT 530E KIT,BRAKE ASSY.
