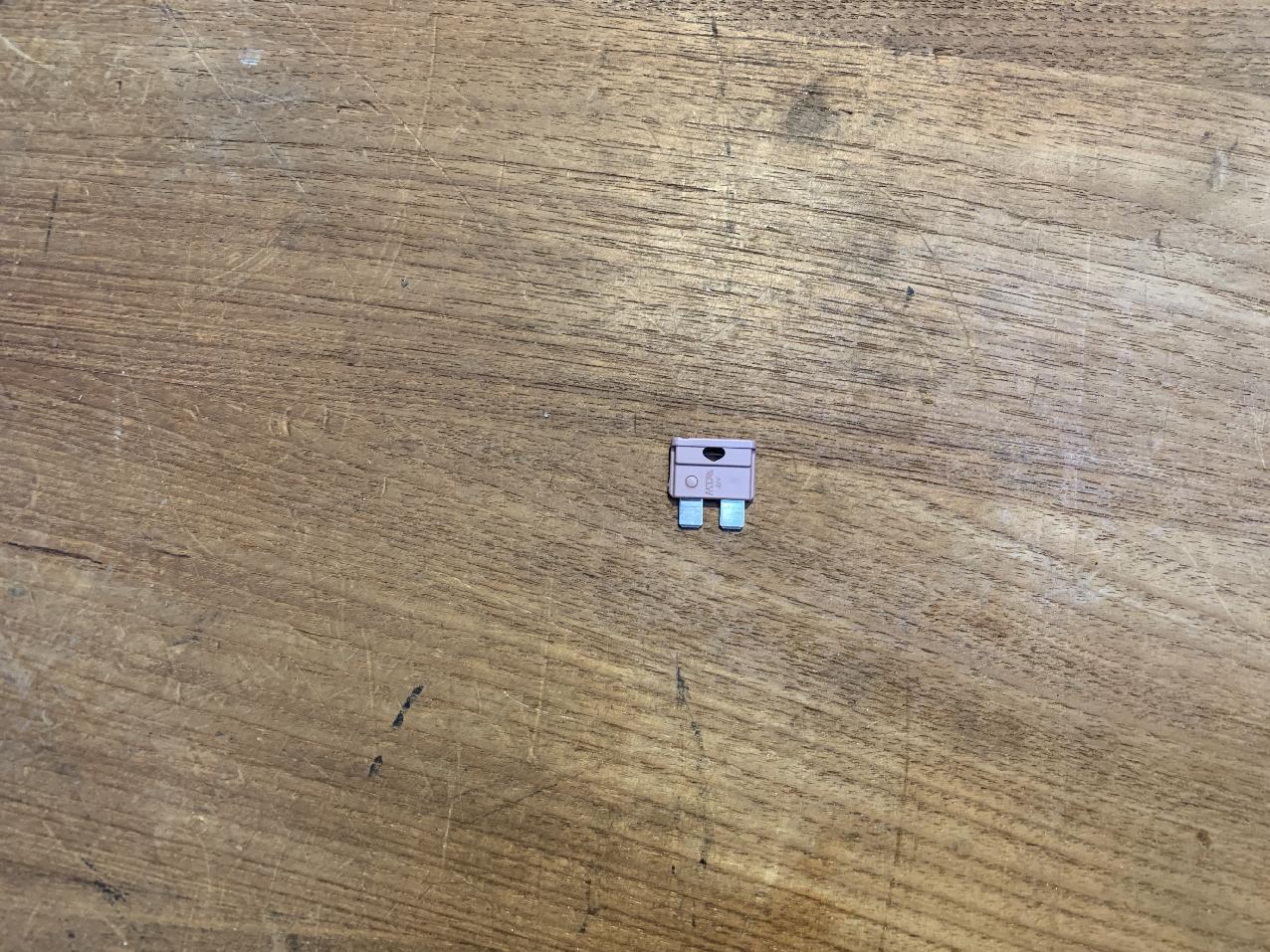

Grove 7482000037 - FUSE, 3 AMP (2210196)

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7482000037, 07482000037, 007482000037

Parts for Grove RT 9150E, Figure 80027561:
Part Number 7482000037: FUSE, 3 AMP (2210196)

Pos nr	Part number	Description	Weight in kg
1	80026704	HARNESS ASSEMBLY-
2	80026852	PLATE, CAB FUSE AND MODULE
3	80027562	PLATE, CAB RELAY
4	7111100411	SCREW, MACHINE
5	7950100141	#10 DIA PLAIN W	0.004
6	7950100050	#10 DIA HELICAL	0.005
7	7660101100	NUT, HEX	0.001
8	7111100611	SCREW, MACHINE
9	6730100007	RAIL, MOUNTING
10	1205297	END CLAMP	0.005
11	3323141	END PLATE	0.005
12	3323139	THROUGH TERMINAL	0.01
13	3323279	INSULATING WALL
14	3323140	CONNECTION TRIPLE	0.005
15	2315698	THROUGH TERMINAL
16	2315699	JUMPER
17	7750000710	RELAY, 24 VOLT	0.180
18	7750000737	RELAY, 24 VOLT
19	3323615	SIGN,	0.010
20	3324496	SIGN,
21	7025000821	ALARM, FAST PULSE BUZZER
22	3056193	FUSE STRIP	0.105
24	7482000567	FUSE, 2 AMP
25	7482000037	FUSE, 3 AMP (2210196)	0.005
26	7482000035	FLAT FUSE LINK 5 A	0.005
27	7482000034	FUSE, 7.5AMP	0.005
28	7482000033	FLAT FUSE LINK 10 A	0.004
29	7482000032	FLAT FUSE LINK 15 A	0.005
30	7482000031	FUSE	0.014
31	3320236	DIODE	0.002
32	3320309	RESISTOR (0355 1K0 TYP MBA 0204)	0.001
33	3320311	RESISTOR	0.005
34	3320312	RESISTOR	0.005
35	8594100268	TUBING, SHRINKABLE
37	7111040611	SCREW, MACHINE	0.001
38	7950040141	WASHER 7/64" I.D.
39	7950040050	LOCKWASHER 7/64" I.D.	0.001
40	7660041100	NUT, HEX	0.001
42	7557000680	RESISTOR, 121 OHMS	0.06
43	3327164	SIGN,
44	80031632	BRACKET-STRAIN RELIEF
