Grove 7642100013

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7642100013, 07642100013, 007642100013

Parts for Grove RT 700E, Figure 2174810085:

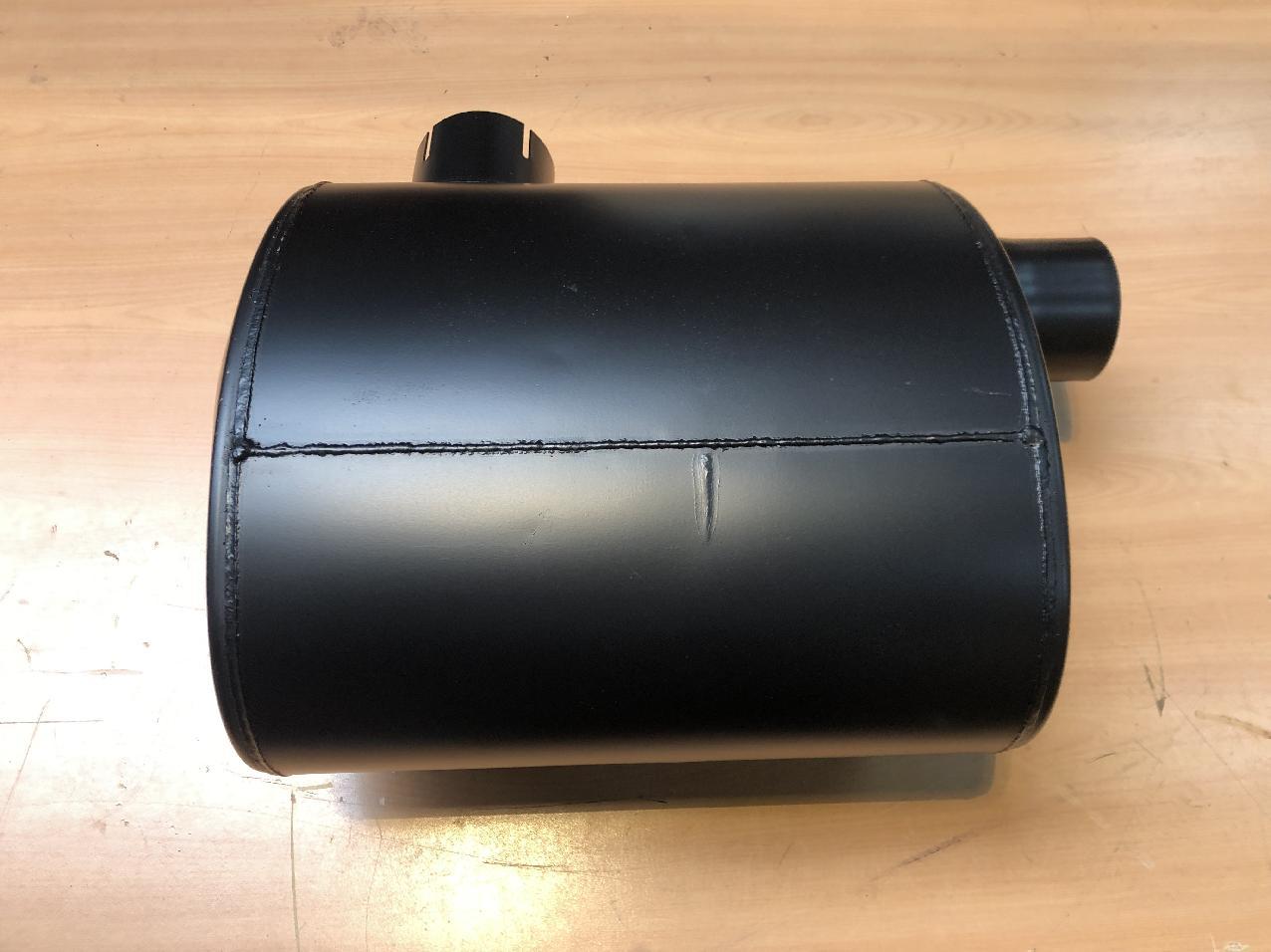

Part Number 7642100013: MUFFLER

Pos nr	Part number	Description	Weight in kg
1	7642100013	MUFFLER	12.626
2	6814100026	GUARD, TAILPIPE	25.231
3	6814100024	GUARD, RGHT HAND MUFFLER	4.660
4	6814100025	GUARD, LEFT HAND MUFFLER	5.164
5	7910101074	TUBE, EXHAUST	6.020
6	7910100874	TUBE, EXHAUST	3.600
7	2174810063	TUBE, EXHAUST	3.190
8	7910100882	TUBE, EXHAUST
9	4174810066	SUPPORT, EXHAUST
10	9543100017	HOSE, METAL	7.177
11	7300000185	CLAMP	0.462
12	7300000231	CLAMP, MUFFLER	0.465
13	7300001018	CLAMP, MUFFLER	0.245
14	7126191253	CAP SCREW, ML X 25MM HEX HEAD	0.026
15	7951190210	LOCKWASHER 10MM	0.005
16	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
17	7115140650	BOLT, HEX 1/4"-20 HC X 3/9 - GPO S	0.036
18	7659000805	NUT, RETAINING
19	6814100019	GUARD, MUFFLER END	2.815
20	7660140000	NUT. HEX 114	0.004
21	7950140141	WASHERI/IT" HARROW	0.050
22	7950140050	LOCK WASHER	0.006
