Demag 47268799 - CHAIN

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

977-1017 (Demag AC 100 )
977-1035 (Demag AC 100 )
989-1035b (Demag AC 25 )
62-1422 (Demag CC 2800 )
62-1432 (Demag CC 2800 )
62-1840 (Demag CC 2800 )
62-1850 (Demag CC 2800 )
62-1882 (Demag CC 2800 )
62-1884 (Demag CC 2800 )
62-1890 (Demag CC 2800 )
62-1896 (Demag CC 2800 )
62-3150A (Demag CC 2800 )
62-3175 (Demag CC 2800 )
62-6350A (Demag CC 2800 )

Also known as:
47268799, 047268799, 0047268799

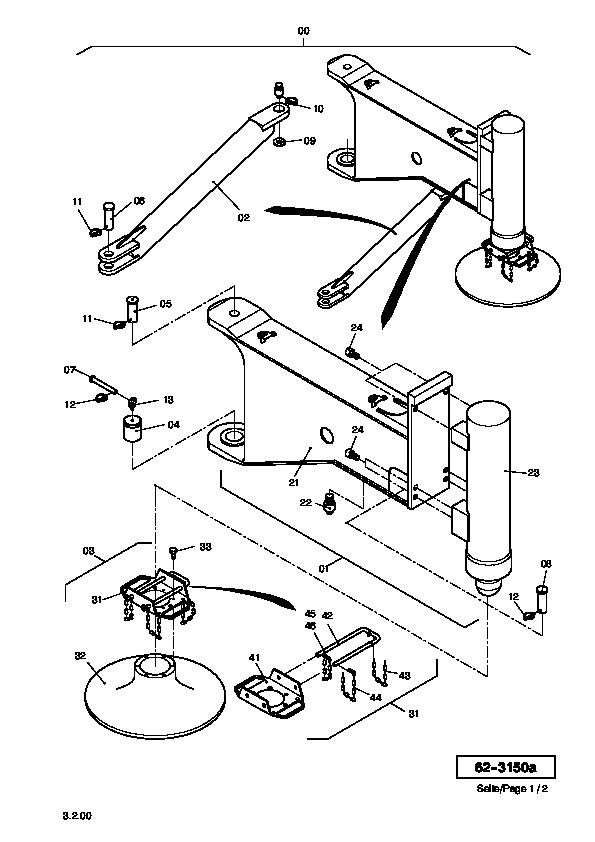

Parts for Demag CC 2800, Figure 62-3150A:
Part Number 47268799: CHAIN

Pos nr	Part number	Description
*	47268799	CHAIN
*	47250599	CHAIN
0	10560012	OUTRIGGER ASSY.
1	10549112	OUTRIGGER ASSY.
2	10560712	OUTRIGGER ROD
3	88162740	SUPPORT PLATE
4	10561912	PIN
5	10577712	PIN
6	10562112	PIN
7	10562212	PIN
8	10562312	PIN
9	10179912	WASHER
10	51161898	SAFETY-PIN
11	55105240	FORE LOCK ED 12639899
12	51161798	PIN SNAP
13	31350199	SCREW
21	10549012	OUTRIGGER
22	10179412	PIVOT
24	31933799	SCREW
31	88162940	RETAINER
32	36335240	SUPPORT PLATE
33	30743199	BOLT
41	88162840	FLANGE
42	57036540	CONNECTION PLUG
46	24342040	RING
