Demag 30780499 - SCREW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )
62-1070 (Demag CC 2800 )
62-1305 (Demag CC 2800 )
62-3110B (Demag CC 2800 )
62-3113B (Demag CC 2800 )
62-6020 (Demag CC 2800 )
62-6060 (Demag CC 2800 )
62-7315 (Demag CC 2800 )
62-7316 (Demag CC 2800 )
62-7380 (Demag CC 2800 )

Also known as:
30780499, 030780499, 0030780499

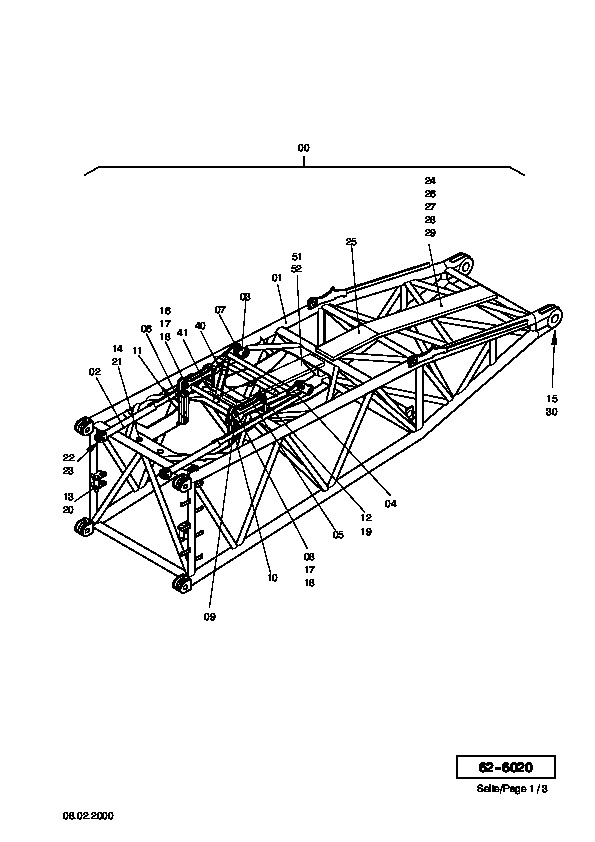

Parts for Demag CC 2800, Figure 62-6020:
Part Number 30780499: SCREW

Pos nr	Part number	Description	Weight in kg
	63421940	GREASE
0	88032440	BOTTOM PIECE, ASSY
1	88032540	BOTTOM PIECE
2	10047912	STAYBAR
3	10048312	SHACKLE
4	10048612	FXPANDER
5	10049312	SHACKLE
6	10049212	SHACKLE
7	10049912	BOLT
8	10095012	PIN
9	10095112	PIN
10	10049712	PIN
11	10049812	PIN
12	10049612	PIN
13	10002612	PIN
14	10002712	PIN
15	10095212	BUSH
16	37263940	COVER
17	30780499	SCREW
18	17047040	LOCTITE
19	46166540	FORE LOCK
20	00037612	SI - LINCH PIN
21	51265640	FORE LOCK
22	10080812	PIN
23	726698	LOCKING SPRING
24	10845412	SAFETY GRATING
24	00046512	SAFETY GRATING
25	10095312	SAFTY WALK
26	10020012	SECURING SAFETY ROPE FOR SAFETY GRATE
28	31731840	OLIVE
29	32123099	BOLT
30	35056299	GREASE NIPPLE	0.01
40	10399712	ROPE DEFLECTOR
41	49050540	LOCK PIN
51	42096340	SAFETY GRATING
52	121912	CLIP
