Demag 31915699 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-3327 (Demag AC 100 )
90-1340 (Demag AC 435 )
62-1235 (Demag CC 2800 )
90-0464 (Demag CC 2800 )
993-0563 (Demag CC 2800 )
993-0671 (Demag CC 2800 )

Also known as:
31915699, 031915699, 0031915699

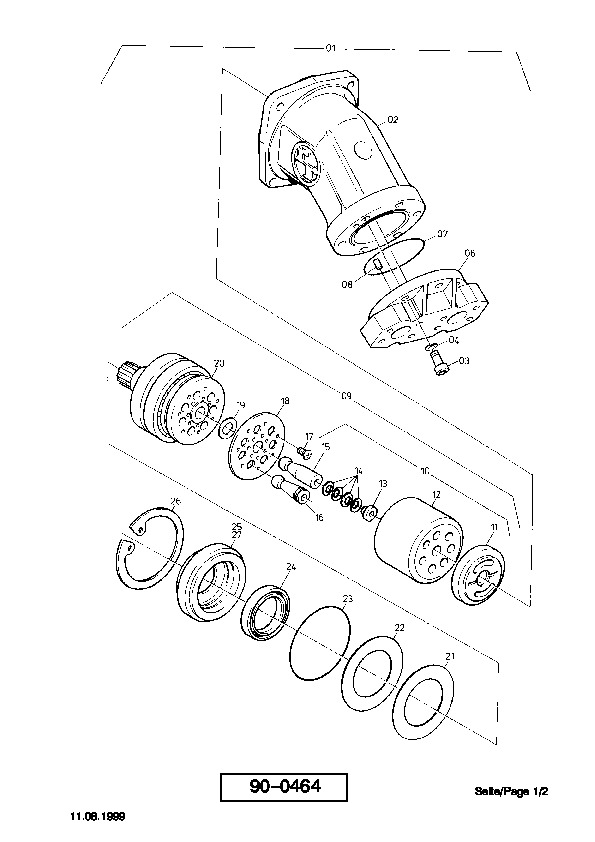

Parts for Demag CC 2800, Figure 90-0464:
Part Number 31915699: BOLT

Pos nr	Part number	Description
	98994600	FLUID SEALING
	99906200	SEAL KIT, ASSY. FIG-NOS: 07,23,24
-	97312500	FLUID SEALING TO FIG-NO: 25
1	49065440	MOTOR
3	31915699	BOLT
4	34385699	RING
6	80659173	CONNECTION PLATE
7	95036500	O-RING
8	34479199	PIN
9	75468400	TRANSMISSION
10	75468500	TRIEBWERK, HYDR. TEIL
11	75468600	CONTROL PLATE
12	75468700	CYLINDER
13	75468800	SPRING PLATE
14	75365900	CUP SPRING
15	75366000	TRUNNION
16	75468900	PISTON WITH PISTON RING
17	75366200	SCREW, BURNISHED
18	75469000	WITHDRAWAL PLATE
19	75366600	DISC
20	75469100	SHAFT WITH ROLLERSET
21	75469200	SHIM RING
22	75469300	SHIM RING
23	97112400	O-RING
24	50403598	RING
25	75355000	LOCKING RING
26	34267399	CIRCLIP 115X
27	75366900	RING
