Demag 65463540 - DRIVERS SEAT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

177-1900a (Demag AC 100 )
177-1900b (Demag AC 100 )
993-0310 (Demag AC 100 )
993-0310 (Demag CC 2800 )

Also known as:
65463540, 065463540, 0065463540

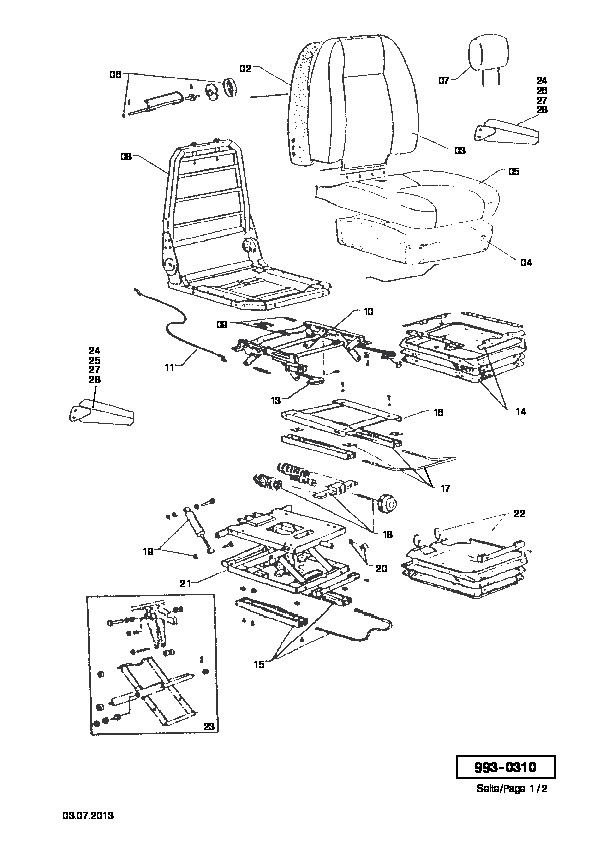

Parts for Demag CC 2800, Figure 993-0310:
Part Number 65463540: DRIVERS SEAT

Pos nr	Part number	Description
	65463540	DRIVERS SEAT
	45265812	UPPER, ASSY.
2	42085112	REAR CUSHION ED41256612
3	42110612	BACK COVER ASSY. KIT EF97826073
4	43157473	SEAT UPHOLSTERY
5	43157373	SEAT COVER
6	45000112	LUMBAR SUPPORT KIT
7	42027912	HEAD REST
8	42150712	SEAT FRAME ASSY.
9	42150812	SPRING KIT
10	42150912	HEIGHT RISER ASSY. KIT
11	42066512	BOWDENCABLE
13	42151112	HANDLE
14	42151212	SHIELD
15	42111712	RAIL SUPPORT SET LOWER
16	42111312	PLINTH KIT
17	42111412	RAIL SUPPORT
18	42027212	WEIGHT ADJUSTMENT KIT
19	42108312	PNEUMATIC SPRING
20	42112212	STOP
21	42149912	SUSPENSION ASSY
22	42151412	SUSPENSION COVER KIT
23	42151512	LEVER CENTRE PIVOT KIT
24	42027812	ARM REST SET EF42110412
25	42034212	ARM REST RIGHT
26	42034312	ARM REST LEFT
27	42034412	BOLT
28	42034512	SPACER
