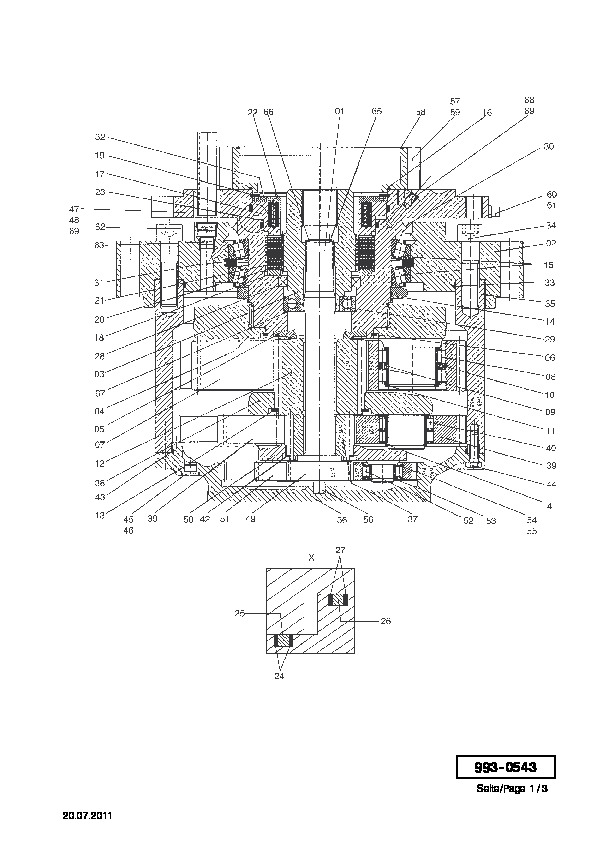

Parts for Demag CC 2800, Figure 993-0543:
Part Number 31339699: SCREW
Pos nr Part number Description Weight in kg
- 10110612 GEARBOX, ASSY.
1 41132412 SPINDLE
2 41132512 SUPPORT RING
3 41132612 CAM
4 43030973 PLANET CARRIER
5 43031173 DISC
6 43031073 CIRCLIP
7 43030773 PLANET GEAR
8 51342798 ROLLER BEARING
9 43030873 LOCATING RING
10 34266999 RING
11 34255799 CIRCLIP
12 43029773 SUN GEAR
13 34257499 CIRCLIP
14 41132712 SHAFT NUT
15 41083112 BEARING
16 50425298 O-RING
17 80548873 PISTON
18 41132812 DISC
19 34268899 CIRCLIP
20 80689873 OUTER DISC
21 96890600 INNER DISC
22 96362400 COMPRESSION SPRING
23 80603673 COMPRESSION SPRING
24 68755900 RING
25 95987400 RING
26 68755700 RING
27 99803900 SUPPORT RING EF96616700
28 41081012 SHAFT SEAL RING
29 50581598 BEARING
30 41081112 ANNEAU
31 34270399 CIRCLIP
32 41132912 DISC
33 51342498 O-RING
34 12532899 CYLINDER SCREW
35 43030673 RING GEAR
36 41133012 RING GEAR COVER
37 43029973 SUN GEAR SHAFT
38 43030573 PLANET CARRIER
39 43030473 PLANET GEAR
40 46097112 CYLINDER BEARING
41 34255099 CIRCLIP
42 34256690 CIRCLIP
43 50257998 O-RING
44 51400698 BOLT
45 31339799 SCREW
46 33989899 WASHER
47 31339699 SCREW
48 33988899 SEAL
49 41133112 SUN GEAR SHAFT
50 41133212 PLANET CARRIER
51 41133312 PLANET GEAR
52 50657698 ROLLER BEARING
53 34248699 CIRCLIP
54 80603473 STOP WASHER
55 41081212 CIRCLIP
56 80464573 ROLLER
57 31930599 BOLT
58 50624198 O-RING 0.010
59 41133412 FLANGE
60 80614773 VALVE
61 33986599 RING
62 31343199 SCREW
63 31344099 SCREW
64 43029373 PIPE
65 34252899 RING
66 43050573 DISC
67 41081312 O-RING
68 96607400 PLUG
69 41081412 EXPANDER
