Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
DEMAG. (Demag AC )
993-0545 (Demag CC 2800 )
Also known as:
97219400, 097219400, 0097219400

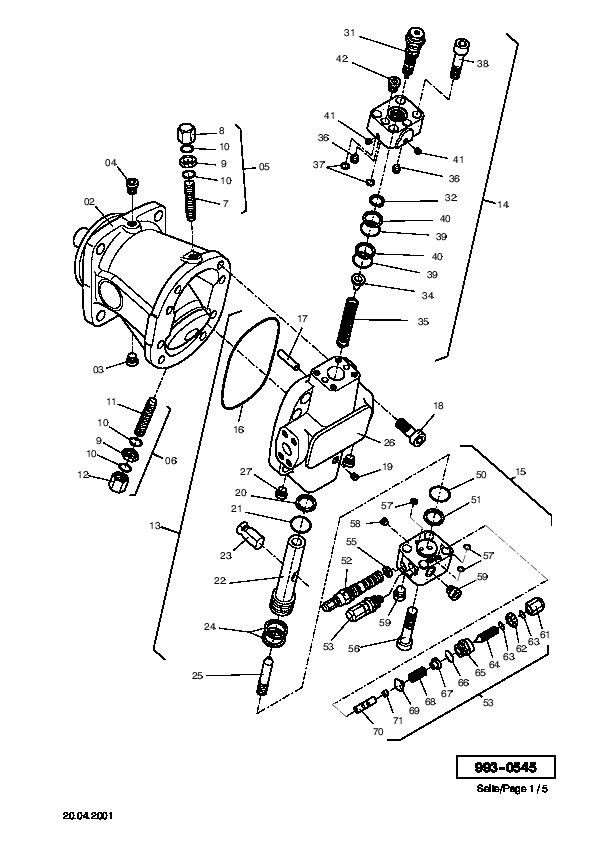

Parts for Demag CC 2800, Figure 993-0545:
Part Number 97219400: O-RING
Pos nr Part number Description
- 75821273 PLUG
- 75820873 NOZZLE
1 10110812 HYDRAULIC-MOTOR
1 41107012 HYDR.-MOTOR ASSY.
2 80484073 HOUSING
3 17344840 PLUG
4 25598540 SCREW
5 75819073 DISPLACEMENT SECTION, ASSY. FIG.-NOS.: 07-10
6 75819173 DISPLACEMENT SECTION, ASSY. FIG.-NOS.: 09-12
7 75651373 BOLT
8 75819273 NUT
9 75787873 NUT
10 97219400 O-RING
11 75819373 THREAD PIN
12 75787773 NUT
13 75819473 ADJUSTER ASSY. FIG.-NOS.: 16-27
14 75819573 CONTROL PART ASSY. FIG.-NOS.: 30-42
15 75819673 COVER, ASSY. FIG.-NOS.: 50-59
16 50594398 O-RING
17 34488899 INTERMEDIATE GEAR
18 50064398 BOLT
19 96473600 DISPLACEMENT SECTION
20 75679773 ROD SEAL
21 50663098 O-RING
22 75819773 PISTON
23 75819873 REGULATION JOURNAL
24 75788673 SEAL RING
25 75313100 BALL BEARING
26 75819973 COVER PLATE
31 75820073 VALVE INSERT
32 34252499 CIRCLIP
34 75820173 SPRING PLATE
35 75820273 SPRING
36 75820373 NON-RETURN VALVE
37 67393000 O-RING EF50137698
38 31919099 SCREW
39 50110198 O-RING
40 75820473 SUPPORT RING
41 99904600 SAFETY PLUG
52 75820573 VALVE INSERT
53 75820673 VALVE
55 75820773 SPACER
56 31949399 VIS
58 99266000 PLUG
61 75820973 NUT
61 76290373 CONTROL LENS
62 75821073 NUT
63 75680073 SEAL RING
64 76289973 THREAD PIN
65 75821173 PLUG
66 50135798 O-RING
67 60485673 SPRING PLATE
68 80485573 COMPRESSION SPRING
69 80485473 SPRING PLATE
70 80485273 PISTON
71 80485373 THROTTLE SCREW
80 80485973 TRANSMISSION ASSY. FIG-NOS: 81 -100
82 75455500 PROTECT CAP
83 75455600 FELT RING
84 75455700 STOP DISC
85 51206298 SCREW
86 75455900 SET BOLT
87 75395300 O-RING
88 75455800 AERATION VALVE,ASSY.
89 75456000 DUST CAP
90 75456100 SPRING PLATE
91 75775273 DRIVE SHAFT
92 75648273 TAPERED ROLLER BEARING
93 80485873 DISC
94 36129499 ROLLER BEARING
95 34151799 SHIM
96 34256699 CIRCLIP
97 00020398 0-RING
98 75756573 SHAFT SEAL
99 75611673 CONSOLE
100 34267599 CIRCLIP
* Selected parts are automatically added to your RFQ list *
97219400 Demag AC O-RING
