Demag 18011340 - PLUG NEW#18011399

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

993-1062 (Demag AC 100 )
993-1064 (Demag AC 100 )
993-1065 (Demag AC 100 )
993-1087 (Demag AC 100 )
89-6041 (Demag AC 25 )
993-0759 (Demag AC 25 )
Demag (Demag AC )
62-1840 (Demag CC 2800 )
993-0546 (Demag CC 2800 )
993-1080 (Demag CC 2800 )
993-1081 (Demag CC 2800 )

Also known as:
18011340, 018011340, 0018011340

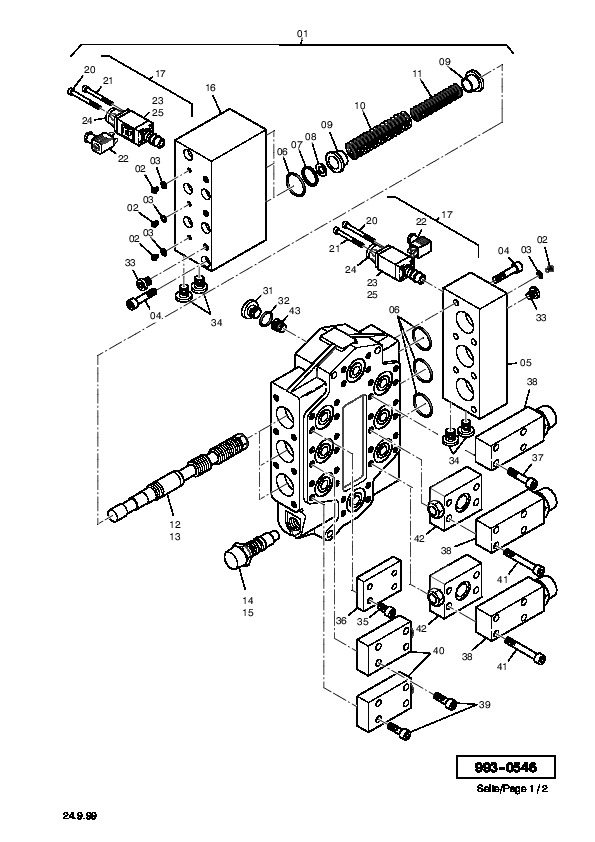

Parts for Demag CC 2800, Figure 993-0546:
Part Number 18011340: PLUG NEW#18011399

Pos nr	Part number	Description
1	88901040	CONTROL BLOCK
2	96124100	SCREW
3	33986199	RING
4	31924799	HEXSOCK SCREW M 8
5	41080512	COVER
6	97305200	O-RING
7	99951600	RING
8	99951700	RING
9	75372300	PARALLEL PIN
10	75372400	SPRING
11	75372500	CONTROL PLATE
12	99952100	PISTON
13	41006212	SEAL KIT
14	32459040	VALVE
15	99430400	GASKET SET
16	41080412	COVER
17	75371600	ELECTRIC WIRE H
20	50628698	SCREW
21	50246198	SCREW
22	69448500	PLUG
23	96091000	MAGNET
24	41080212	BELLOW
25	76502973	SEAL KIT
31	75336300	PLUG
32	50609398	0-RING
33	75804273	COUPLING
34	18011340	PLUG NEW#18011399
35	31942999	SCREW
36	99441000	SCREW,BURNISHED
37	51147098	SCREW
38	41080312	BLEED-OFF VALVE
39	51362698	SCREW
40	41080612	NON-RETURN VALVE
41	31926599	CYLINDER HEAD BOLT
42	25616440	TRANSMITTER WITH AMPLIFIER
43	41007412	SCREW PLUG

* Selected parts are automatically added to your RFQ list *

Your request list:

Pieces	Part nr.	Description	Brand
- +	59216840	SEALING COMPOUND	Demag
- +	726698	LOCKING SPRING	Demag
- +	65735840	RETAINER	Demag
- +	60493640	WELDING WIRE 18KG	Demag
- +	30759799	SCREW	Demag
- +	10054412	CONSOLE	Demag
- +	33467899	HEXAGON NUT	Demag
- +	10080012	PLATE	Demag
- +	37185999	PLUG	Demag
- +	41452840	REDUCTION	Demag
- +	31928899	HEXSOCK SCREW	Demag
- +	15112899	CLAMP	Demag
- +	51265640	FORE LOCK	Demag
- +	63587940	CABLE	Demag
- +	31948599	SCREW	Demag
- +	10059012	PIN	Demag
- +	18011340	PLUG NEW#18011399	Demag

Send Price Request »
