Demag 50029698 - SCREW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

993-0652 (Demag AC 100 )
993-0761 (Demag AC 100 )
993-0839 (Demag AC 25 )
993-1338 (Demag AC 25 )
993-0761 (Demag CC 2800 )

Also known as:
50029698, 050029698, 0050029698

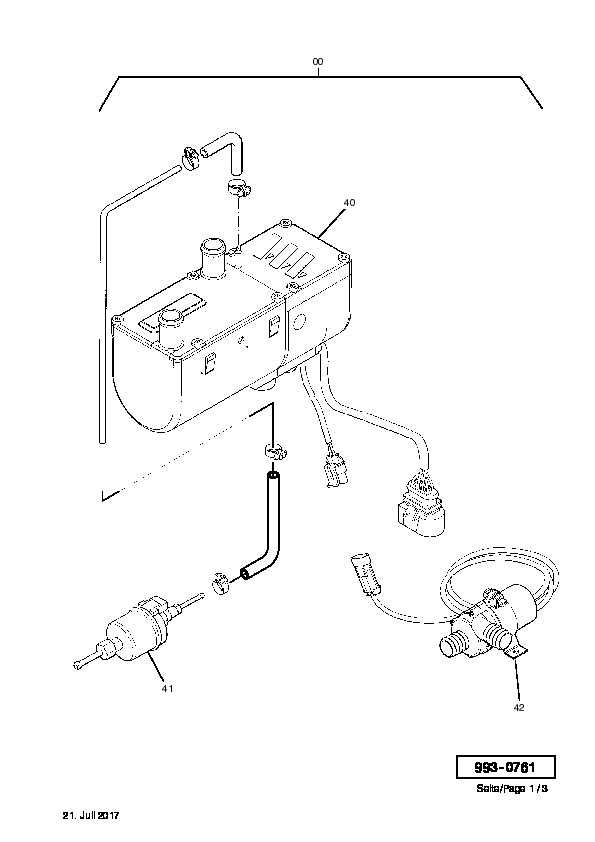

Parts for Demag CC 2800, Figure 993-0761:
Part Number 50029698: SCREW

Pos nr	Part number	Description	Weight in kg
0	45007312	HEATER DEVICESEE PAGE 993-0761
1	42195712	CASING
2	42092012	COMBUSTION AIR BLOWER
3	42195812	COVER
4	42195912	COMBUSATION CHAMBER
5	42196112	HEAT EXCHANGER
6	45007412	CONTROL UNIT
6	42196312	COVER
7	42196212	COVER
9	42196412	SEAL KIT
10	42196512	O-RING
11	45007512	GLOW PLUG
12	42647112	LINING
13	45007612	SENSOR FLAME MONITORING
15	42196612	THREADED PIECE
16	42196712	CABLE HARNESS
17	42120012	SEAL RING
18	42196812	LEITUNGSSTRANG
19	42196912	SPRING
20	42126512	O-RING
23	50029698	SCREW	0.10
24	34317499	DISC
25	97526900	NUT
27	31922399	SCREW
28	31945099	SCREW
30	12627499	COUNTERSUNK SCREW
40	42168012	HEATER DEVICE, ASSY.
41	42047512	FUET METERING PUMP
42	42047412	WATER PUMP
61	42126412	THERMOSENSOR
