Figures in which the part appears:
DEMAG. (Demag AC )
993-0672 (Demag CC 2800 )
Also known as:
51138998, 051138998, 0051138998

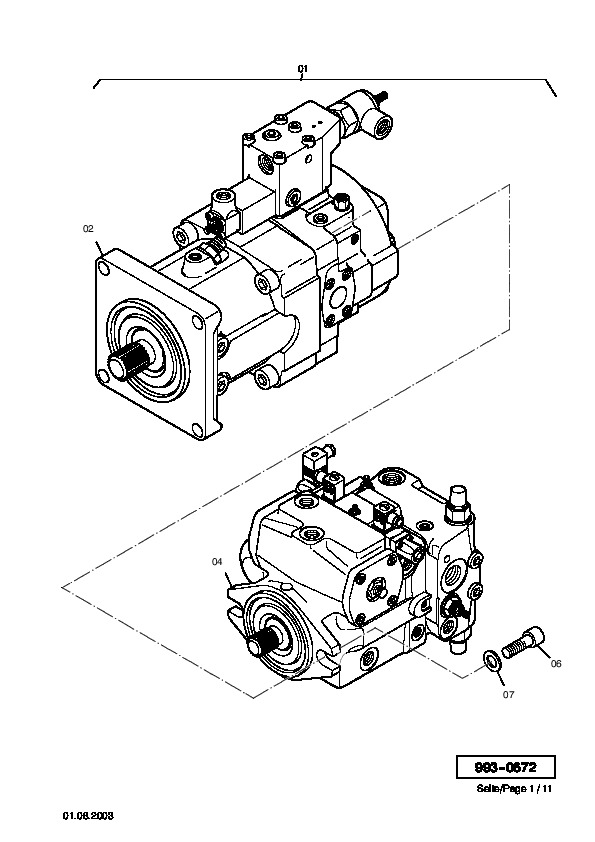

Parts for Demag CC 2800, Figure 993-0672:
Part Number 51138998: O-RING
Pos nr Part number Description Weight in kg
1 10161612 PUMP COMBINATION SEE PAGE 993-0672
2 41158112 HYDR. PUMP, ASSY. FIG-NOS.: 11-28
4 41158212 HYDR. PUMP, ASSY. WITH SHUTTLE FILTER FIG-NOS.: 201-223
6 51098998 ZYLSHR M 16X 35 8.8-A3C DIN 912
7 41057612 WASHER
11 41158312 TRANSMISSION, ASSY. FIG-NOS.: 04,05,21-45
12 41158412 CONNECTOR PLATE, ASSY. FIG-NOS.: 50-59
13 41122712 GOVERNOR ASSY.
14 41110512 ADJUSTMENT, HYDR.
15 41122812 ADJUSTMENT
16 41124712 CARRIER, PUMP, ASSY. FIG--NOS.: 91-95
18 76206273 HIRIGO PIN
19 41158512 IDLER
20 41108912 GEWINDESTIFT
21 75651273 NUT
22 25517140 PLUG
23 50469298 BOLT
24 41111412 O-RING
25 17349440 SCREW PLUG
26 41110812 SPN-STI
27 34254099 CIRELIP
28 41109912 SHUTTLE VALVE
31 41158612 TRANSMISSION, HYDR. PART, ASSY.
32 41123112 BALANCER
33 41123212 SHAFT
34 41123312 LOCKING RING
35 75769273 WIRE
36 41123412 ROLLER
37 41123512 BUSHING PAIR
38 41123612 RETAINER
39 41123712 ROLLER BEARING
40 41123812 CAGE COUPLE
41 34255199 CIRCLIP 52X2
42 75808273 SHAFT SEAL
43 51167098 0-RING
44 31913399 SCREW NF 50977898 0.02
50 41122112 BUSHING
51 41158712 CONNECTOR PLATE CLOCKWISE ROTATION
52 41123912 ROLLER BEARING
53 41023712 BREAKING PLUG
54 41124112 PARALLEL PIN
55 41158812 PARALLEL PIN
56 25567940 PLUG
57 27099640 SCREW PLUG
58 75765573 NOZZLE
59 76279273 NOZZLE
61 41124212 GOVERNOR ELEMENT WITH FIG.-NOS.: 67, 71-73
62 41124312 METERING PISTON
63 41124412 GOVERNOR ELEMENT WITH FIG-NOS.: 73, 81, 82
65 50646598 O-RING
66 50504798 O-RING
67 18002240 O-RING
69 96904300 O-RING
71 50137898 0-RING
72 50179598 O-RING
73 99860300 NUT
81 50589398 O-RING EF 59260840
82 50963498 0-RING
91 50628198 O-RING
92 51388798 SCREW
93 41124812 FLANGE
94 41111512 O-RING
95 41124912 COUPLING
97 41110012 DICHT-RG
201 41125112 TRANSMISSION, ASSY. WITH FIG-NOS.: 231+232
202 41125212 ADJUSTMENT, HYDR..WITH FIG-NOS.: 241-244
203 41125312 CONNECTOR PLATE WITH VALVE FIG-FLOE.: 251-266
204 41125412 GEAR PUMP KIT, ASSY. FIG-NOS.: 281+282
205 41125512 MODULATION CONTROL, ASSY. FIG-NOS.: 291-302
206 41125012 FILTER, ASSY.FIG-NOS.: 311-315
208 41125612 HINGE PIN
209 41125712 FIXATION PIN
210 36087340 SCREW PLUG 0.08
211 25598540 SCREW
213 50002398 SCREW
214 51138998 O-RING
215 99265500 PLUG
217 75357000 NOZZLE
218 75779273 DOWEL PIN
220 17349340 O-RING
221 41125812 THREADED PIN
222 41125912 FLANGED NUT
223 41126112 NOZZLE
231 41126212 CIRCLIP
232 41126012 SHAFT SEAL RING
241 41126312 PISTONWITH FIG-NO.: 245
242 51182198 0-RING
243 41126412 GUIDING RING
244 41126512 SEAL RING
245 99429600 O-RING EF96468100
251 41126612 PRESSURE VALVE WITH FIG-NO.: 271+272
252 41126712 PRESSURE RELIEF VALVE WITH FIG-NO.: 273+274
253 41126812 SHUT DOWN VALVE WITH FIG-NO.: 275-277
254 41126912 CONNECTOR PLATE
255 41127112 BEARING BUSH
256 50917098 BOLT
257 76333873 O-RING
263 41127212 BUSHING
264 41127312 BEARING BUSH
265 98060900 RING
