Demag 00022612 - SAFETY GRATING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

62-6024 (Demag CC 2800 )
62-6025 (Demag CC 2800 )
62-6028 (Demag CC 2800 )
62-6115 (Demag CC 2800 )
62-6116 (Demag CC 2800 )
62-6117 (Demag CC 2800 )
62-6118 (Demag CC 2800 )
62-6132 (Demag CC 2800 )
62-6324 (Demag CC 2800 )

Also known as:
00022612, 0022612, 022612, 22612, 000022612, 0000022612

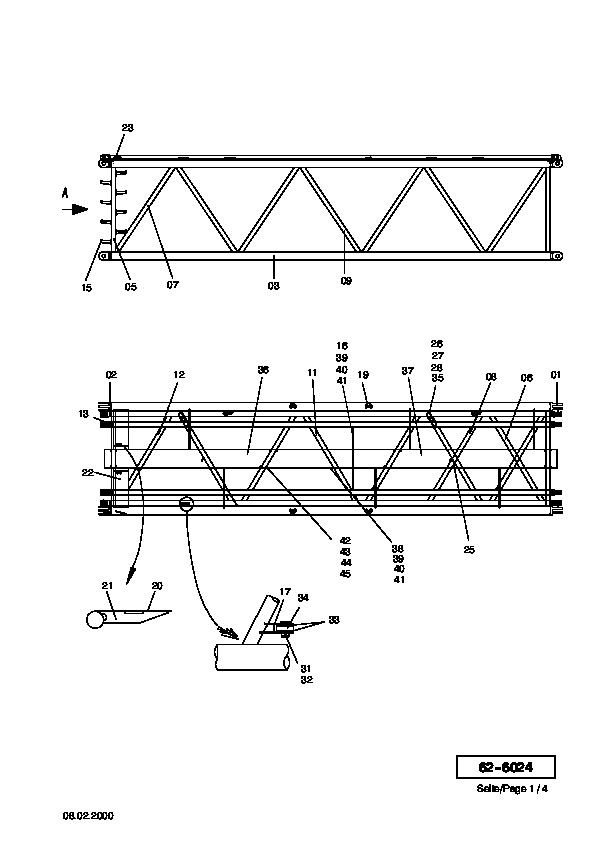

Parts for Demag CC 2800, Figure 62-6024:
Part Number 00022612: SAFETY GRATING

Pos nr	Part number	Description
-	17047040	LOCTITE
-	59282540	WELD WIRE 1 PC = 18 KG
-	60493640	WELDING WIRE 18KG
-	63499840	WELDING WIRE
0	10003712	EXTENSION 12M, ASSY
1	10052112	FORK END
2	10004712	DOUBLE FORK END
3	10054612	CHORD MEMBER
4	88058940	PIPE
5	88059140	PIPE
6	88059240	PIPE
7	88059340	PIPE
8	88059440	PIPE
9	88059540	PIPE
10	88059640	PIPE
11	88059740	PIPE
12	88059840	PIPE
13	10000212	CONSOLE
14	10368312	CONSOLE
15	10001212	STEP
16	10288112	ROPE DEFLECTOR
17	10001712	RETAINER FOR ROLLER
19	51515540	TRESTLE
20	10002112	STEP PLATE
21	10002012	PLATE
22	10001912	STEP PLATE
23	726798	HANDLE
24	10002212	4-WAY BALL COCK
25	65735840	RETAINER
26	10001012	ROD SUPPORT
27	34355244	THREADED PIN
28	33467899	HEXAGON NUT
29	88076440	STAY BAR 12M, PIPE 133X10
30	10002412	FRAME TUBE
31	10002512	PIN
32	34214299	SPIT PIN 10X70
33	51343698	DISC
34	65424140	ROLLER
35	51031498	WASHER
36	00095012	SAFETY GRATING
37	00022612	SAFETY GRATING
38	88044840	CONNECTOR
39	30775699	HEX SCREW M 8X
40	50986298	NUT
41	35076399	DISC
42	10020012	SECURING SAFETY ROPE FOR SAFETY GRATE
43	32123099	BOLT
44	31731840	OLIVE
46	50590398	BOULON
46	10851012	PIN
47	726698	LOCKING SPRING
48	10002612	PIN
49	10002712	PIN
50	10052312	LABEL
51	10052412	LABEL
52	00037612	SI - LINCH PIN
53	51265640	FORE LOCK
55	10289212	GUIDE ROLLER
