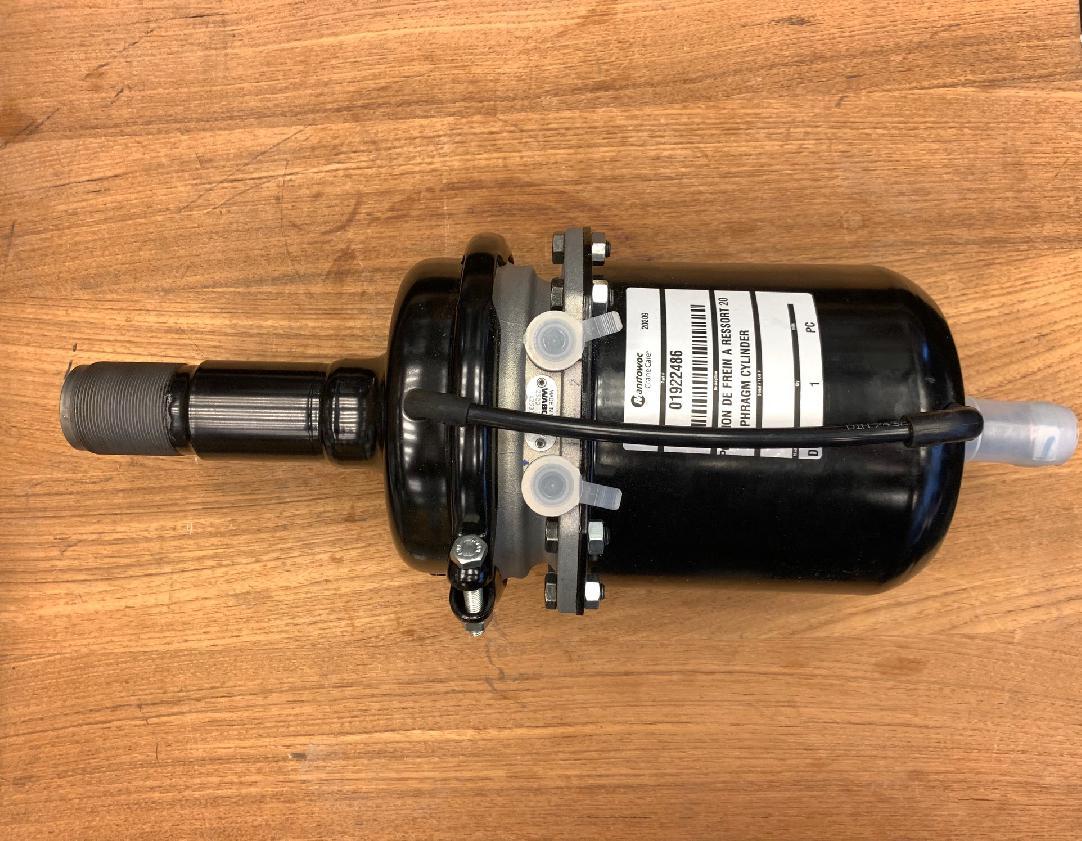

Grove 2311865 - DIAPHRAGM CYLINDER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2311865, 02311865, 002311865

Parts for Grove GMK 6300L, Figure 3177164-ETL:
Part Number 2311865: DIAPHRAGM CYLINDER

Pos nr	Part number	Description	Weight in kg
1	2315706	DIAPHRAGM CYLINDER	2
2	2315707	SPRING DIAPHRAGM CYLINDER	14.501
3	1147721	SCREW-IN FITTING	0.04
4	0208008	W-CONNECTION NOZZLE	0.082
6	0208013	L-CONNECTION NOZZLE	0.094
7	0435646	COUPLING NUT	0.02
8	0436472	CUTTING RING	2.072
9	1202061	PRESSURE TEST CONNECTION	0.07
10	0551442	SLEEVE	0.005
12	3317601	HOSE CLAMP	0.01
13	2311865	DIAPHRAGM CYLINDER	13
