Search for Crane Part number
Figures in which the part appears:
4315111-ETL (Grove GMK 4080-3 )
4315112-ETL (Grove GMK 4080-3 )
3239727-ETL (Grove GMK 4090 )
3295945-ETL (Grove GMK 4090 )
Also known as:
3272336, 03272336, 003272336
Parts for Grove GMK 4090, Figure 3295945-ETL:

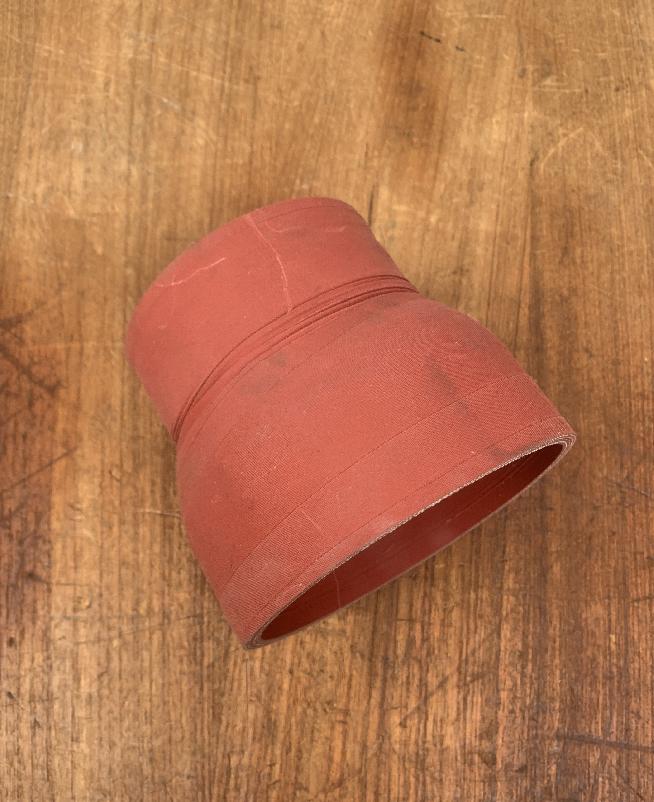

Part Number 3272336: SOCKET
Pos nr Part number Description Weight in kg
1 3295946 SUBASSY. COOLER
2 3255181 PLATE
3 3240039 HOSE 0.3
4 3253894 HOSE
5 3250096 HOSE 0.150
6 4156539 PLUG SOCKET
7 1207768 HOSE
8 3255175 HOSE
9 3272336 SOCKET 0.200
10 3272351 CHARGE AIR PIPE
11 4156602 PRESSURE HOSE 0.35
12 3227435 HOSE SLEEVE
13 3295947 HOSE 0.300
14 3303517 COOLING WATER PIPE
15 3303518 COOLING WATER PIPE
16 3303519 COOLING WATER PIPE
17 3320244 CLAMP 0.17
18 3140962 CLAMP
19 3292637 HOLDER CPL.
20 3255195 CHARGE AIR PIPE
21 3255196 CHARGE AIR PIPE
22 1207350 HOSE 10 X 3,5 (PER METER) 0.067
23 4158205 CLAMP (PAIR)
24 4160221 T-PIPE CONNECTION
29 4162323 OIL SERVICE VALVE WITH ROPE
30 3041858 HOSE CLAMP 0.12
31 2318223 HOSE CLAMP 0.26
32 1925398 HOSE CLAMP 0.050
33 1925395 HOSE CLAMP 0.04
34 1925393 HOSE CLAMP 0.025
35 1207632 HEXAGON SCREW
36 1147796 HEXAGON SOCKET HEAD CAP SCREW 0.01
37 1925033 WASHER 6 0.005
38 0027078 HEXAGON SCREW M6X20 0.006
39 1686862 WASHER M12 0.006
40 0437190 HEXAGON SCREW M12X30 0.04
41 0437644 HEXAGON NUT M12 0.084
43 3272801 PLUG SOCKET
48 1571479 CLAMP (PAIR) WITH SCREWS
49 4248782 FITTING
50 4162321 VALVE
51 4240979 FITTING
52 1571750 SUPPORT RAIL NUT 0.030
53 1147785 HEXAGON SOCKET HEAD CAP SCREW 0.01
54 2217171 HOSE CLAMP 0.026
55 3140312 HEXAGON SOCKET BUTTON HEAD SCREW
56 2312088 SHAPED HOSE
57 4185031 VARIANTS HEATING HOSES T3A
59 0027071 HEXAGON SCREW M8 0.010
60 1925396 HOSE CLAMP 0.04
61 4162215 SCREW-IN FITTING
63 1069994 CLAMP (PAIR)
65 1146979 HEXAGON SOCKET HEAD CAP SCREW 0.015
66 0437742 HEXAGON NUT M6 0.005
67 4162330 SCREW-IN FITTING
68 3301139 PIPELINE
69 2318290 HOSE (PER METER)
70 3301140 PIPELINE (PER METER)
71 4162328 STRAIGHT PIPE UNION
72 1576128 CLAMP (PAIR) 0.03
73 3225040 ASSY. RAIL
74 1207473 HEXAGON SOCKET HEAD CAP SCREW 0.145
77 4192502 PLATE
78 3323076 SEALING STRIP (PER METER) 0.22
79 2316926 FENDER WASHER
80 0552185 FLEXIBLE EDGE PROTECTION (PER METER) 0.14
81 4192504 PLATE
82 4175491 HEXAGON NUT
83 3312921 CLIP
* Selected parts are automatically added to your RFQ list *
3272336 Grove GMK 4080-3 SOCKET
