Demag 50994098 - SCREW

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

977-1000b (Demag AC 100 )
977-1001b (Demag AC 100 )
977-1010 (Demag AC 100 )
977-1090 (Demag AC 100 )
977-1091 (Demag AC 100 )
977-1245 (Demag AC 100 )
993-1233 (Demag AC 100 )
89-2105i (Demag AC 25 )
989-10005f (Demag AC 25 )
989-1007f (Demag AC 25 )
989-1098a (Demag AC 25 )
993-1233 (Demag AC 25 )
62-1250 (Demag CC 2800 )
62-6098 (Demag CC 2800 )
993-0542 (Demag CC 2800 )

Also known as:
50994098, 050994098, 0050994098

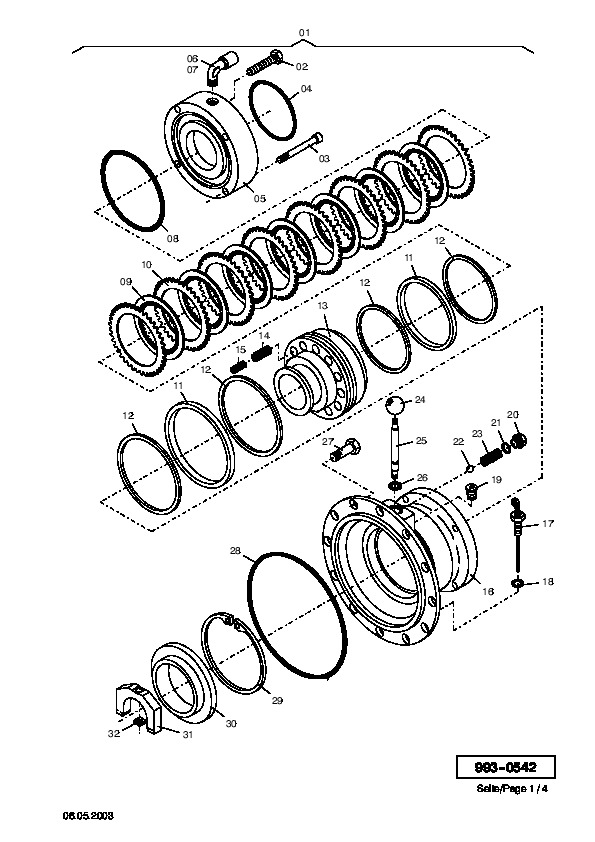

Parts for Demag CC 2800, Figure 993-0542:
Part Number 50994098: SCREW

Pos nr	Part number	Description
1	10111912	SLEW GEAR, ASSY.
2	30746999	BOLT
3	50484098	SCREW
4	50297898	O-RING
5	41128712	MOTOR BELL HOUSING
6	41032412	BREATHER
7	43116073	ANGLE
8	50425198	O-RING
9	80480373	INNER DISK
10	80689873	OUTER DISC
11	68755700	RING
12	41020412	SEAL
13	43116473	PISTON
14	96859900	SPRING
15	80401600	SPRING
16	41128812	DISK CARRIER
17	41088612	OIL DIPSTICK
18	33990799	SEAL
19	96607400	PLUG
20	50676798	SCREW PLUG
21	33998399	SEAL RING
22	80446073	BALL
23	96616600	SPRING
24	43116973	BALL KNOB
25	43116873	SHIFT LEVER
26	41305612	SEAL RING
27	50994098	SCREW
28	97219800	O-RING
29	34268499	RING
30	43116673	SHIM
31	96847300	RETAINER PLATE
32	99520400	SQUARE NUT
40	50081598	BOLT
41	41305512	RING GEAR
42	15107199	O-RING
43	41164412	SUN GEAR SHAFT
44	34247599	CIRCLIP
45	41034012	PLANETARY CARRIER ASSY.
46	41034812	STOP WASHER
47	41026012	SUN GEAR
48	34257199	CIRCLIP
49	41034212	PLANETARY CARRIER ASSY.
50	41025812	SUN GEAR
51	34256699	CIRCLIP
52	41103312	DISK
53	41164512	PLANETARY CARRIER ASSY.
54	50621998	SCREW
55	50749398	WASHER
56	41025612	RING GEAR
57	15107699	ROLLER BEARING
58	36681399	RING
59	63895844	O-RING
60	41164612	AXLE TUBE
61	50999296	SCREW PLUG
62	33999899	WASHER EF 33990299
63	15107799	ROLLER BEARING
64	41035112	DISK
65	50236198	SHAFT SEAL
66	41103412	OUTPUT SHAFT
